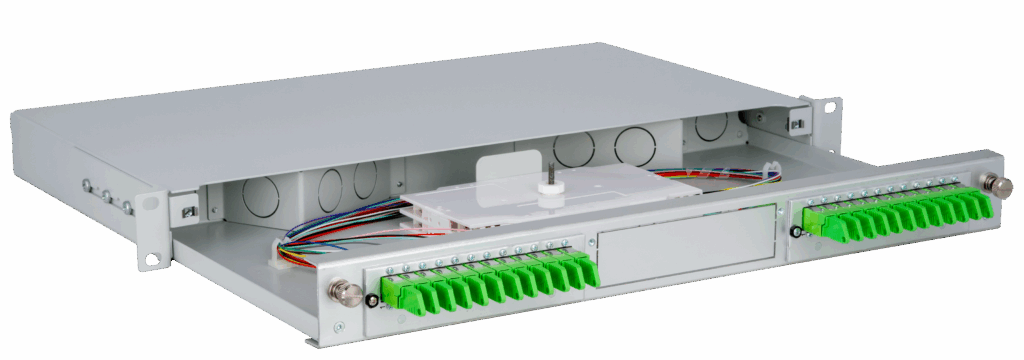

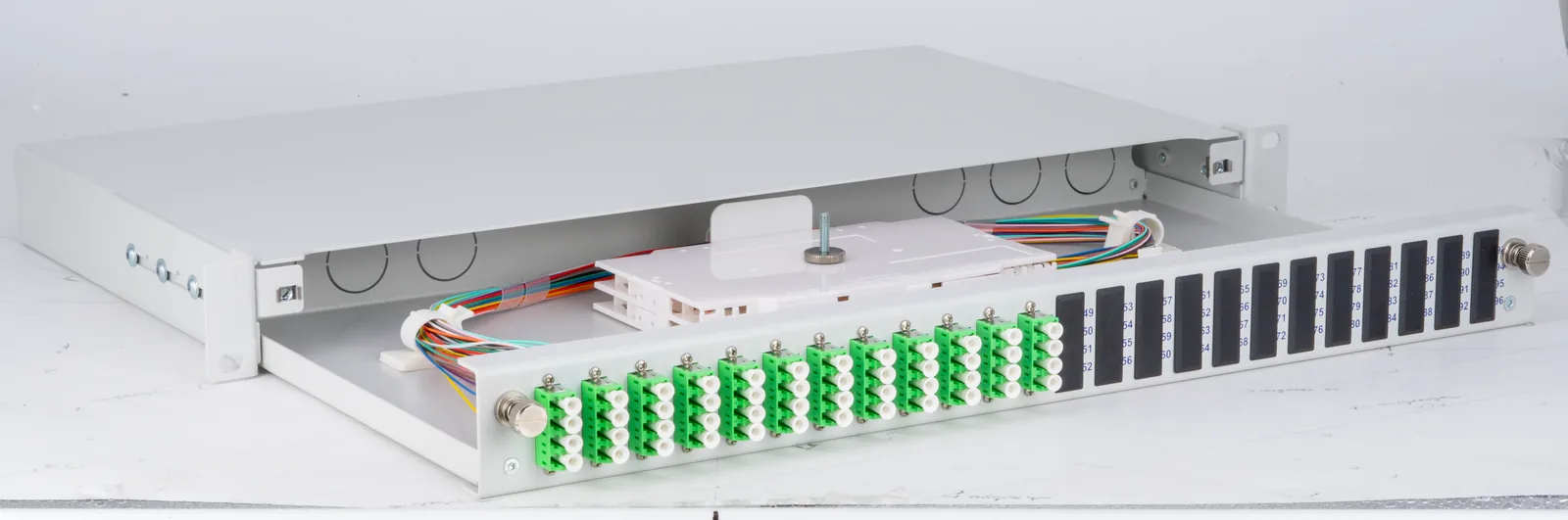

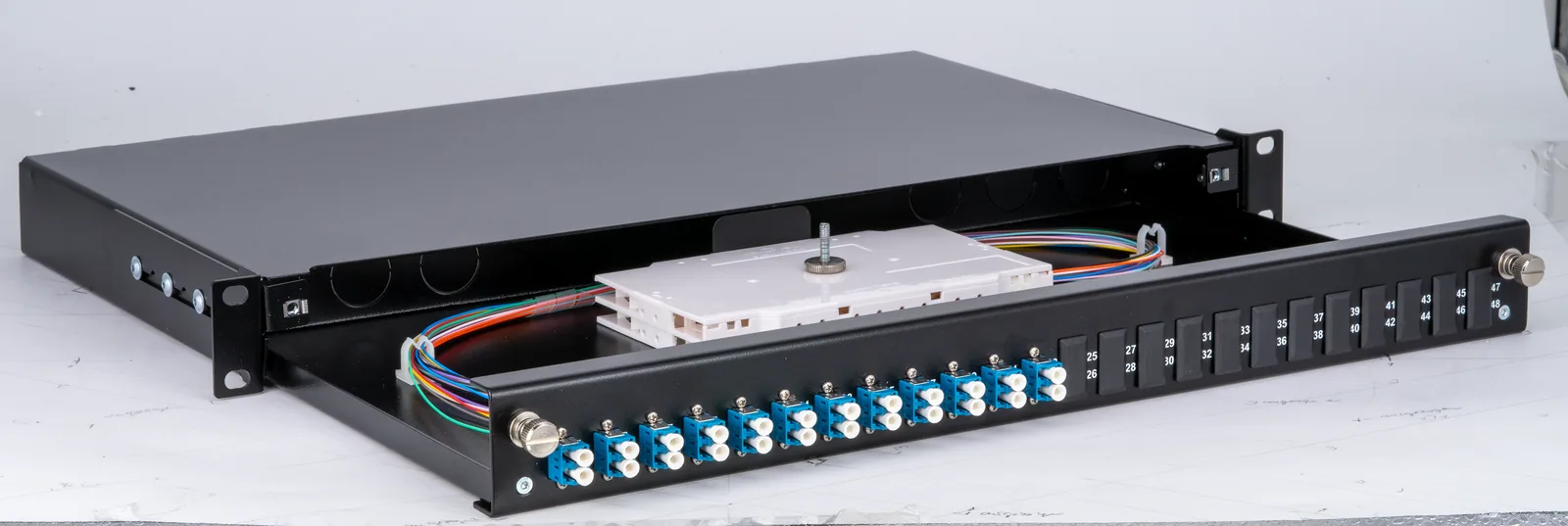

High-density splice systems: SlimConnect 1U revolutionizes fibre optic distribution
SlimConnect 1U revolutionizes fiber optic distribution with unprecedented port density: 72 fibers in just one height unit set new standards for rack efficiency and space utilization. At a time when data center space is one of the most valuable resources and rack rents of 200-500 euros per U and month are not uncommon, every millimeter saved becomes a competitive advantage. Discover our high-density splice systems.
The SlimConnect system with its three integrated 7TE front modules demonstrates how intelligent design can redefine physical limits – without compromising on quality, ease of maintenance or future-proofing. For data center planners, telecommunications providers and enterprise IT departments, SlimConnect is a strategic option that overcomes physical infrastructure constraints.
Design principles for extreme port density
The 1U optimization requires a fundamental rethink of traditional splice enclosure conceptsInstead of a vertical arrangement, SlimConnect uses horizontal layering of different functional areas. The available 44.45 mm height is precisely divided between the cable entry, fibre routing, splice holder and connection organization.
Tri-level architecture maximizes available space
The lower level accommodates backbone cable entries, the middle level is used for fibre distribution and routing, while the upper level is optimized for front modules and connections. This layering eliminates fibre crossings and enables systematic organization despite extreme compactness.
Compact 30-40 mm fibre guide radii are specially designed for bend-optimized G.657.A1/A2 fibres: These radii fall below standard requirements for standard G.652 fibers and require appropriate fiber selection. The system specification clearly defines compatible cable and fiber types to avoid performance problems.
The front-to-back routing concept minimizes lateral cable exits: All cables are primarily fed in from the rear and systematically routed to the front of the 7TE front modules. This unidirectional routing optimizes both space utilization and maintenance accessibility in the extreme 1U geometry.
7TE front module Integration and flexibility
Three standardized 7TE front modules create the basis for 72-fibre capacity: Each module offers 24 connections in proven 7TE geometry with optimized port arrangement. This modularity enables various connector combinations (E2000, LC, SC) depending on the application requirements.
Hot-swappable modules for 24/7 operation
Hot-swappable modules enable maintenance of high-density splice systems during operation: individual 7TE modules can be replaced in redundant systems during operation without affecting other modules. This granularity is particularly valuable in 24/7 data center environments where service interruptions are costly.
Customizable module configurations support various application scenarios:
- Pure singlemode configurations for backbone applications
- Mixed mode for campus environments
- Specialized configurations for 5G backhaul
- Smart City-applications
Tool-free module installation reduces service complexity for high-density splice systems: modules are inserted by hand and fixed in place using snap-in mechanisms. This simplification is particularly important in confined 1U spaces, where complex tool handling would be problematic.
Areas of application and target groups High-density splicing systems
Data center environments with maximum ROI
Data center environments benefit from maximum 1U efficiency: colocation providers can link rack costs directly to port density – SlimConnect with 72 fibers per U enables maximum revenue per rack unit. This efficiency is particularly valuable in Tier 1 data centers with premium locations.
Edge computing and 5G infrastructure
Edge computing locations with limited space: Local data centers in industrial areas industrial areas or telecom POPs often have small racks or limited floor space. SlimConnect maximizes connectivity even in constrained environments. High-density splice systems are ideal for these conditions.
5G backhaul aggregation in compact shelters: Mobile radio base stations are increasingly using compact outdoor housings with limited rack capacity. SlimConnect enables high-density fiber aggregation for small cell backhaul or fronthaul applications.
Campus networks and public institutions
Campus networks with high-density access requirements: High-density splicing systems are essential in universitiesHospitals or office complexes require many fiber optic connections in central distribution frames. SlimConnect reduces rack footprint and enables more connectivity in existing equipment rooms.
Municipal utilities and municipal network operators benefit from the compact design combined with high scalability for gradual FTTH expansion. This is what makes high-density splice systems so special.
Performance optimization with high port density
Optical quality without compromise
Optical performance despite compactness: Factory optimization and quality control ensure that there are no performance compromises, even with 72 fibres per U. All connections meet or exceed industry standards for attenuation and reflection.
Cross-talk minimization with dense fibre packing: Systematic fibre routing and segregation prevent mutual interference even with extreme packing density. This isolation is critical for high-speed applications above 10 Gbit/s.
Signal integrity for high-speed applications
25G/40G/100G Ethernet applications place the highest demands on fiber quality. SlimConnect design takes these requirements into account with optimized bending radii and high-quality components – a decisive advantage for system integrators and network operators.
Maintenance and service concepts
Granular maintenance despite high port density
Individual 7HP modules can be removed for maintenance without affecting other modules. This granularity is particularly valuable with 72 fibers on 1U, as full system maintenance would be impractical. High density splice systems
Service access optimization for 1U geometry: Special access mechanisms enable maintenance work even in confined rack environments. Magnetic fastenings and ergonomic handles facilitate module handling.
Rapid deployment for time-critical applications
Preconfigured modules can be installed in minutes, which is critical for emergency repairs or rapid expansion. This speed is particularly important for 24/7 data center environments and critical infrastructures valuable.
Profitability and ROI analysis
Rack Rental Optimization
With rack costs of 200-500 Euro/HE/month, SlimConnect pays for itself within 6 months through space savings. This direct ROI relationship makes business cases easy to present.
Reduced footprint means lower OPEX: less rack consumption not only reduces rental costs but also energy and cooling costs. These OPEX savings add up to considerable amounts over the operating time.
Installation Cost Savings
Preconfigured modules reduce deployment costs by 30-50%. These savings are particularly important for large rollouts of installers and system houses relevant.
Competitive Differentiation
Port density superiority
While competitors typically offer 24-48 fibers on 1U, SlimConnect achieves 72 fibers – a 50-200% higher density. This superiority is directly measurable and communicable. That is why we are committed to ensuring that our developments all represent high-density splice systems in each height unit.
Modularity advantages vs. monolithic designs: 7HP modules enable granular maintenance and flexible configuration, while monolithic 1U designs often require “all-or-nothing” approaches.
Innovation and technology leadership
Continuous further development: Fiber Products invests over 15% of its turnover in research and development of new fiber optic technologies. SlimConnect 1U only represents the current status – further port density increases and smart features are already in development. High-density splicing systems are indispensable today.
Partnership Ecosystem: Close cooperation with leading manufacturers such as diamond ensures that SlimConnect systems harmonize optimally with current and future active technology. Joint Development Programs develop special configurations for new switch generations.
Sustainability and circular economy: Made in Europe production with short transportation routes, recyclable materials and modular upgradeability support corporate sustainability goals. End-of-life programs enable professional recycling and component refurbishment.
Future-proofing through standard architecture
7HP format is future-proof and evolutionary, whereas proprietary 1U designs are often dead ends. This future-proofing protects long-term investments and enables migration to VarioConnect 3U/4U systems.
Conclusion and implementation recommendations
SlimConnect 1U sets new standards for high-density splice systems and proves that extreme miniaturization does not necessarily mean compromising on quality or maintainability. The 72-fiber capacity on just one height unit opens up new architectural possibilities for space-critical applications and creates direct economic added value through rack efficiency.
The intelligent integration of proven 7TE modules in 1U geometry combines standardization with innovation and creates a future-proof solution for high-density splice systems. At the same time, the characteristic ease of maintenance of modular systems is retained even in extremely compact form.
For data centre planners, colocation providers and all organizations with space-critical fibre optic requirements, SlimConnect offers a strategic option that overcomes physical constraints and enables new levels of efficiency. The investment usually pays for itself within a few months through direct space savings.
Contact us to evaluate together how SlimConnect 1U systems can maximize your rack efficiency and open up new architectural possibilities for your fiber infrastructure can create.
