7HP splice modules
Factory-assembled 7HP splice modules. They migrate between SlimConnect 1U, VarioConnect 3U and DIAMOND subracks.
Modular distribution: three points that decide a 7HP system
Modules grow one at a time, subracks stay in place for years — how well a distribution level can be expanded depends on that.
Module instead of complete box
Replacing a whole box to add six fibres means paying for the full height every time. Modules grow one at a time.
Subracks are fixed
The rack is in place, and so is the subrack. New fibres have to fit the existing 7HP grid, not the other way round.
Connector systems in the installed base
LC, SC, E-2000 and ST on the same module grid — the expansion matches the existing connector interface.
What defines this line
Characteristics shared by every version.
Compact module for installation in 3U subracks
Fully pre-assembled, fitted and ready for splicing
Cut-out for strain relief of the loose tubes and pigtails
Splice tray for a maximum of 24 crimp splices, secured with two screws
Steel bracket removable for cable routing
Aluminium M50 for the largest possible loose-tube bend radius
Connection technology at a glance
Each version comes in several fibre grades — the form factor stays the same.
OM3 · OM4 · OM5 · OS2

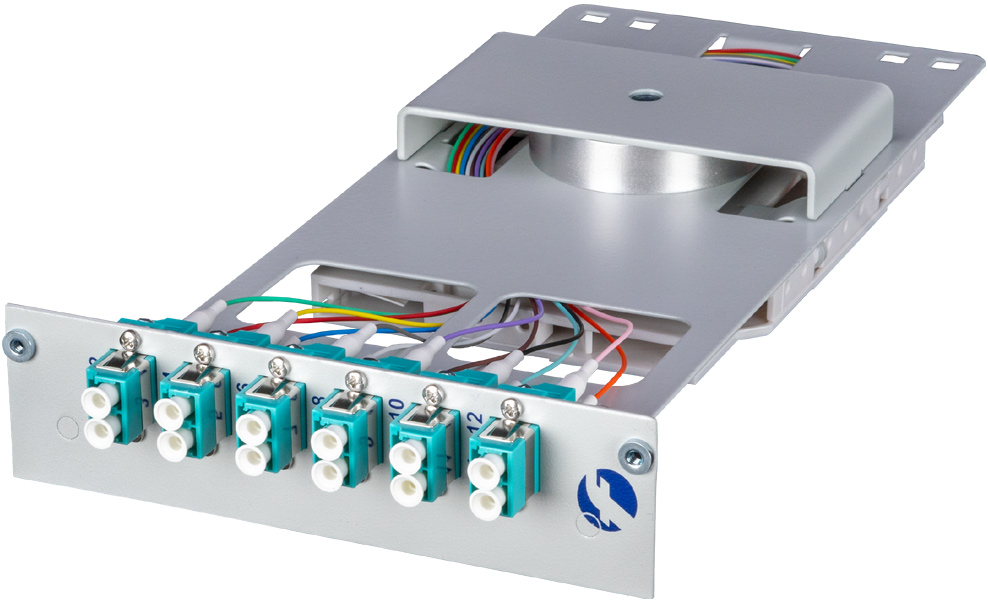

6× LC DX
10 versions · from order no. 137000
OM3 · OM4 · OM5 · OS2

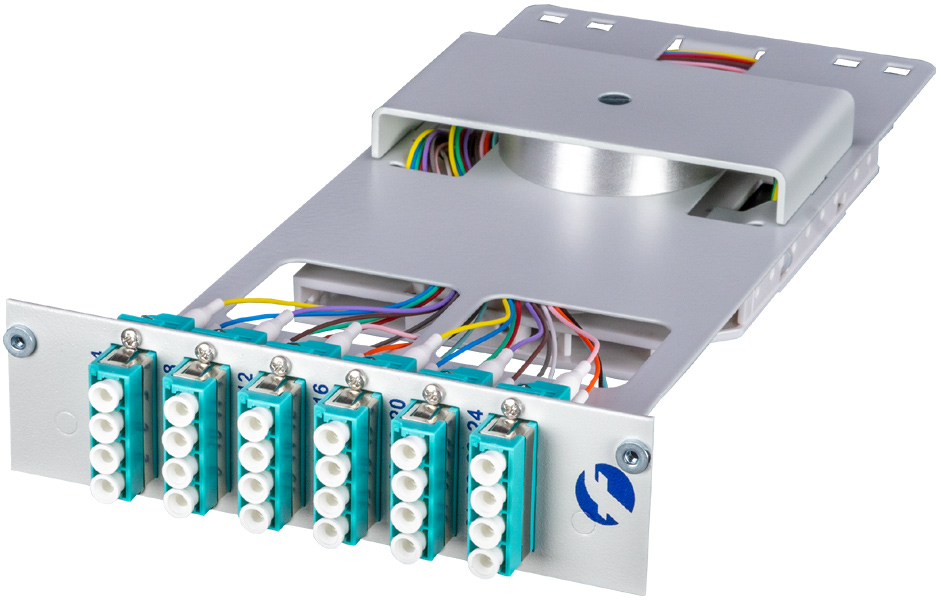

6× LC QUAD
10 versions · from order no. 137004
OM3 · OM4 · OS2

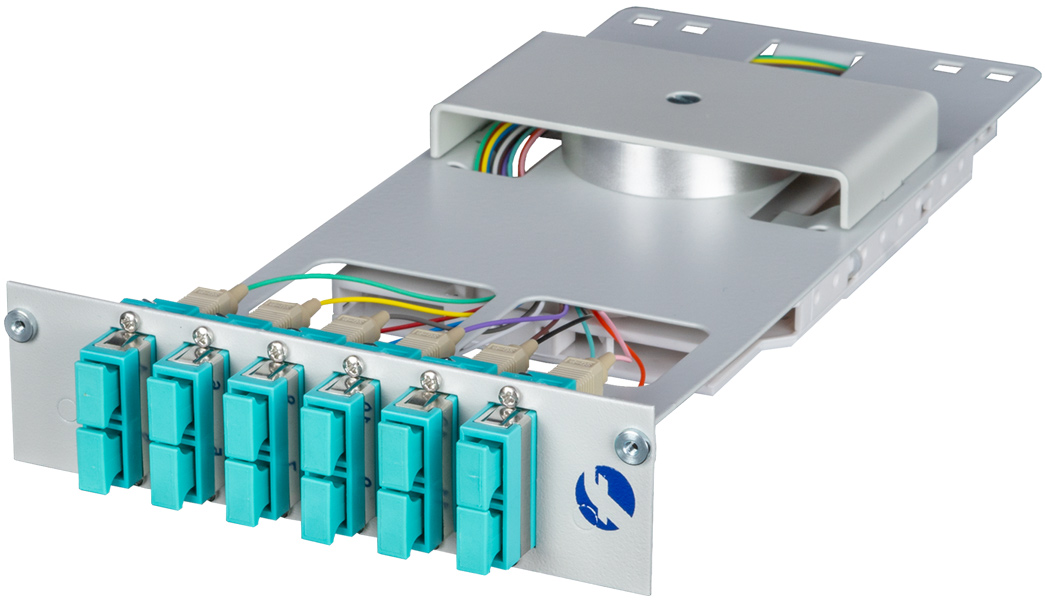

6× SC DX
8 versions · from order no. 137008
OM3 · OM4 · OS2

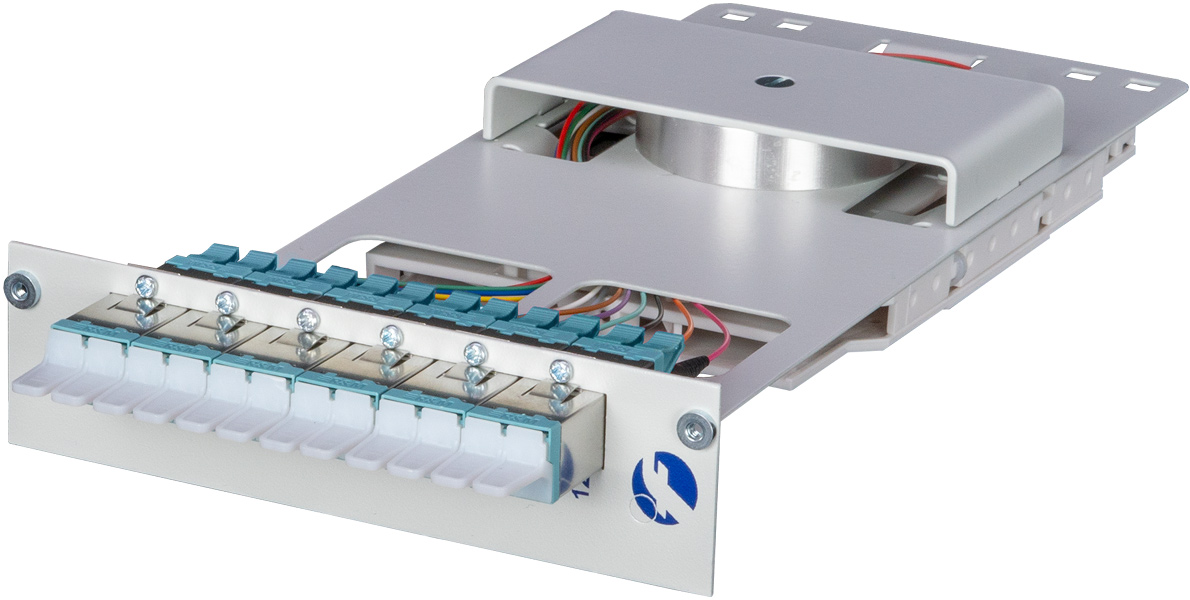

6× E2000 DX-C
8 versions · from order no. 137015
OM3 · OM4 · OS2

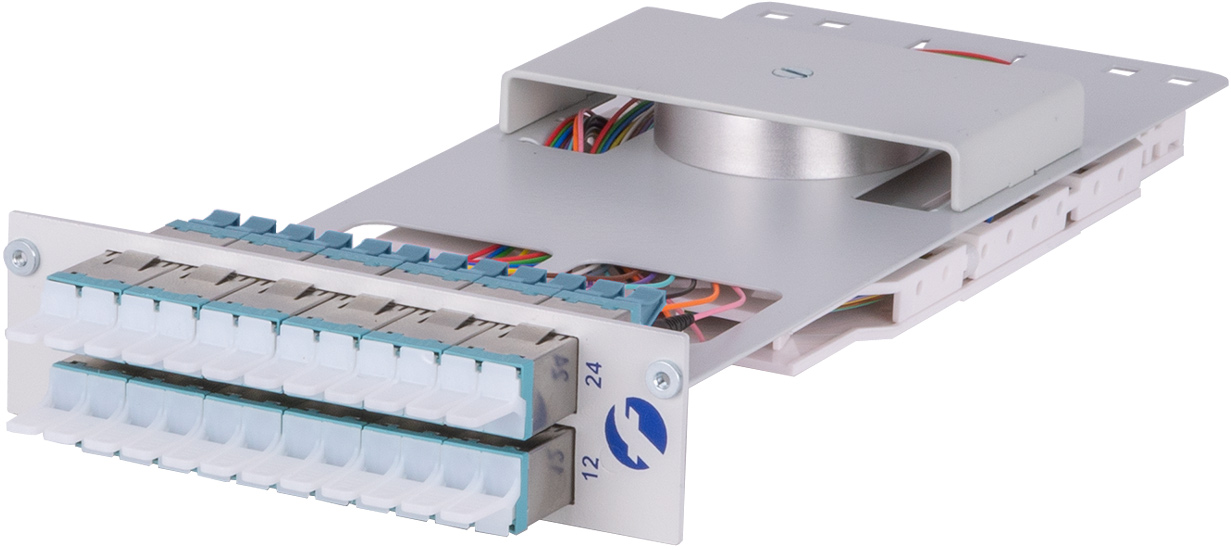

12× E2000 DX-C
8 versions · from order no. 137019
OM3 · OM4 · OS2

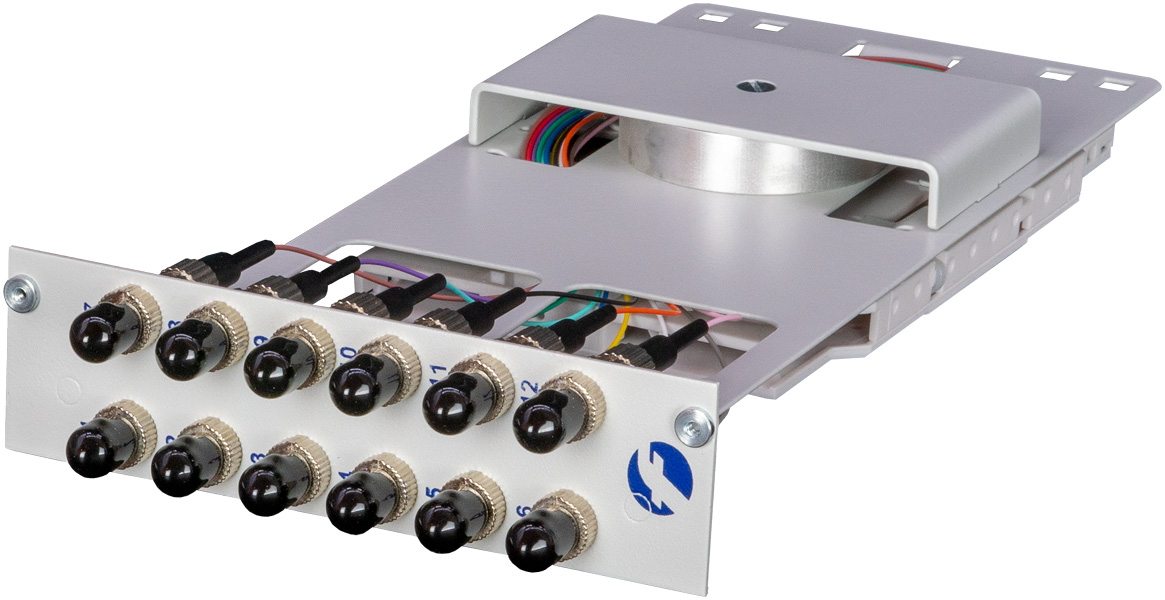

12× ST
6 versions · from order no. 137012
Characteristics of the 7HP splice modules line
How to read the fibre grade off the module without looking up the datasheet.
Technical data
Tabelle seitlich scrollbar
| Version | 12E2000 DX-C, 12ST 7TE H, 6E2000 DX-C 7TE H, 6LC QUAD 7TE H, 6SC DX 7TE H |
| Couplings | 12, 12 (Grade B, RdM), 6, 6 (Grade B, RdM) |
| Pigtails | 12, 12 (Grade B, RdM), 24, 24 (Grade B, RdM) |
| Fibre grade | OM3, OM4, OM5, OS2 APC, OS2 UPC |
| Fibre type | 50/125μ, 9/125μ |
| Coupling colour | Aqua, Blau, Grün, Lindgrün, Rot, Schwarz … |
| Coupling material | Kunststoff, Metall |
| Height | 3HE |
| Width | 7TE |
| Colour | RAL7035 / Grau, RAL9005 / Schwarz |
Coupling colour and fibre grade
OM3
OM4
OM5
OS2 APC
OS2 UPC
Our splice modules for modular systems
7HP splice modules for modular 1U solutions and high-capacity 3U or 4U systems – available in all common connector types

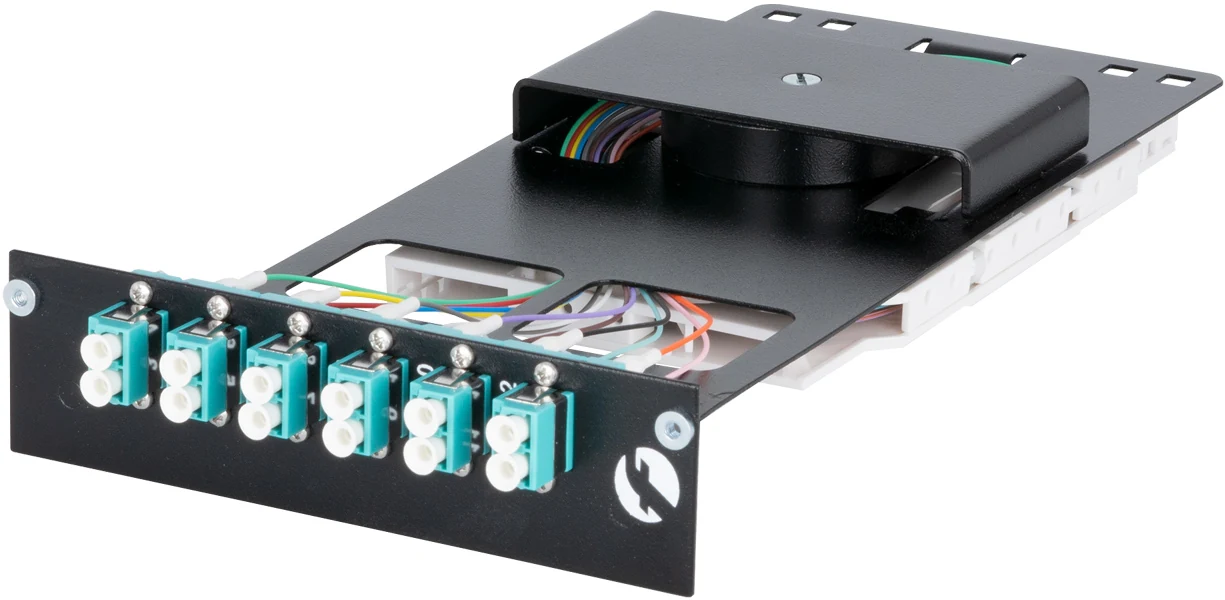

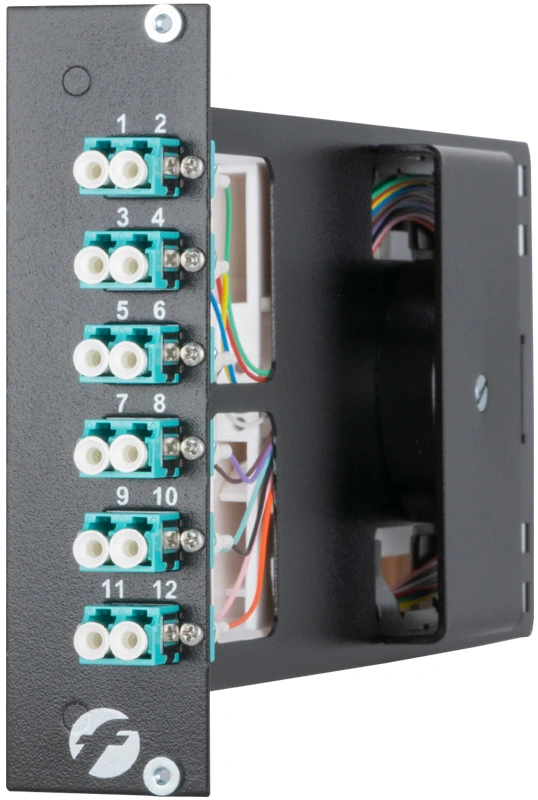

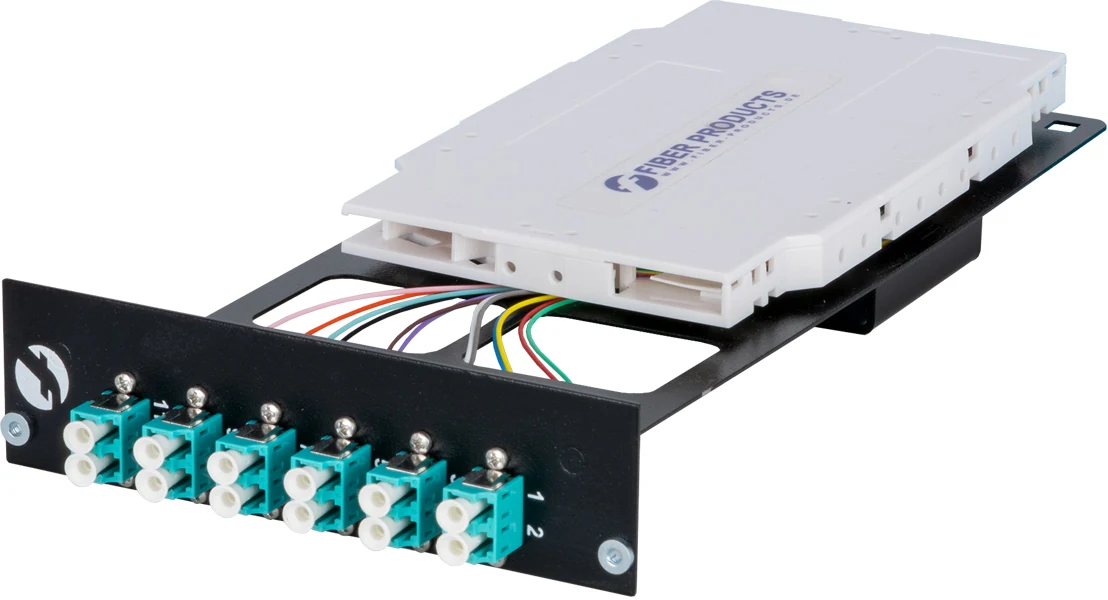

SM 6LC DX 7TE H OM3 BLACK – Side view
Professional 7HP splice module with 6 LC duplex connections for OM3 multimode fibers
Professional splice modules for maximum flexibility
Our splice modules revolutionize fiber optic distribution through consistent modularity. The 7HP format enables granular scaling from 6 to 288 fibers without system changes – perfect for growing networks and changing requirements.
- 7HP module format – Building block for modular 1U, 3U and 4U systems
- Available in all common connector types: LC, SC, E2000, MTP
- Pull-out modules for service-friendly maintenance
- Scaling from 6 to 288 fibers without system conversion
- Precise splice cassettes with optimal fiber management
- For air-conditioned interiors from 0°C to +60°C
Unique modularity: The consistent 7HP module format allows you to start small projects with individual modules in 1U systems and seamlessly expand to high-capacity 3U or 4U systems as required. All modules are available in different connector types.
Discover now in the online shop
All splice modules and system configurations are available directly in our online shop. From individual modules to complete system solutions at competitive prices.
To the splice modulesTechnical specifications
7HP modular architecture for VarioConnect systems with European manufacturing quality and maximum flexibility.
Tabelle seitlich scrollbar
| Module width | 7HP (35 mm) – standard Eurocard format for VarioConnect frames |
| Fiber capacities | 6-, 12- and 24-fiber modules – Configurable by module |
| System capacity | Up to 72 fibers (1U), up to 288 fibers (3U) – Depending on the frame system. In the DIAMOND 4U subrack up to 144 fibres (12 compact modules, 7HP) |
| Connector types | LC, SC, E2000 DIAMOND, MTP/MPO – standardized per module |
| Maintenance concept | Pull-out modules – service-friendly access without interruption |
| Operating temperature | 0°C to +60°C – Optimized for air-conditioned interiors |
| Fields of application | Data centers, wind power, transport companies, industrial plants |
| Manufacturing | European production – German engineering quality |
| Warranty | Manufacturer warranty – Competitive prices on request |
7HP modular architecture
Splice modules for various industries
7HP modular architecture for maximum flexibility – scalable from 6 to 288 fibers for professional fiber optic distribution in controlled indoor environments
System integrators
Flexible 7HP modules for customer-specific project solutions – from individual modules to high-capacity systems for controlled environments
Find out more
Industry 4.0
Service-friendly 7HP modules for Industry 4.0 and controlled production environments – expandable with RailConnect compatibility
Find out more
Municipal utilities
Modular systems with limited dust and moisture resistance for growing municipal networks – start small and expand step by step in protected environments
Find out more
System houses
Professional IT system solutions with modular 7HP components – scalable for different customer projects in climate-controlled environments
Find out more
Wind power
DIAMOND E2000 precision connectors in 7HP modules for protected distribution cabinets – modularly expandable for ring topologies with vibration resistance
Find out more
Installers
Professional 7HP modules for efficient installation and service-friendly maintenance – expandable systems for technical rooms (0°C to +60°C)
Find out moreReady for modular splicing solutions?
Talk to our splice module experts about your fiber optic project. Free consultation, individual configuration and tailor-made solution proposals for every application.
✓ Free initial consultation ✓ Modular 7HP solutions ✓ Made in Europe
Professional splice modules for data centers, telecommunications and industry
Further information on splice modules
Discover comprehensive guides to installation, comparison, maintenance and troubleshooting of fiber optic splice modules for professional applications
Splice modules fiber optic installation explained
Step-by-step instructions for the professional commissioning of fiber optic splice modules. Field-tested methods for error-free installation.
FTTH modules comparison 2025
The ultimate guide for the optimal module selection for FTTH projects. Compare the performance, costs and application areas of different modules.
7HP Splice Modules Troubleshooting
Systematic fault diagnosis for efficient fiber optic maintenance. Professional methods for quick problem solving with splice modules.
7HP Fiber optic maintenance concept
Revolution of the modular service strategy. Learn about systematic maintenance strategies that halve service times.
Discover more expertise
Visit our blog for more articles about splice modules, installation guides and professional fiber optic technology.
To the blogRelated Fiber Optic Solutions
Fiber optic splice boxes
Compact solutions for outdoor and building applications
Fiber optic distribution cabinets
19″ rack systems for data centers
Fiber optic patch panels
Flexible patch panel solutions for every application
Data center infrastructure
Highly available data center solutions
Smart City Solutions
Intelligent city infrastructures
FTTx infrastructure
Fiber-to-the-X complete solutions
Splice module with winding mechanism
The splice module brings its own base carrier with it.
Versions and order numbers
Every version in this line with its order number. Prices on request and in the shop for registered customers.
50 items — show all
Tabelle seitlich scrollbar
| Order number | Designation | Weight |
|---|---|---|
| 134000 | Spleißmodul SM 6LC DX 7TE H OM3 BL | 0,31 kg |
| 134001 | Spleißmodul SM 6LC DX 7TE H OM4 BL | 0,31 kg |
| 134002 | Spleißmodul SM 6LC DX 7TE H OS2 APC BL | 0,31 kg |
| 134003 | Spleißmodul SM 6LC DX 7TE H OS2 UPC BL | 0,31 kg |
| 134004 | Spleißmodul SM 6LC QUAD 7TE H OM3 BL | 0,33 kg |
| 134005 | Spleißmodul SM 6LC QUAD 7TE H OM4 BL | 0,33 kg |
| 134006 | Spleißmodul SM 6LC QUAD 7TE H OS2 APC BL | 0,33 kg |
| 134007 | Spleißmodul SM 6LC QUAD 7TE H OS2 UPC BL | 0,33 kg |
| 134008 | Spleißmodul SM 6SC DX 7TE H OM3 BL | 0,35 kg |
| 134009 | Spleißmodul SM 6SC DX 7TE H OM4 BL | 0,35 kg |
| 134010 | Spleißmodul SM 6SC DX 7TE H OS2 APC BL | 0,35 kg |
| 134011 | Spleißmodul SM 6SC DX 7TE H OS2 UPC BL | 0,35 kg |
| 134012 | Spleißmodul SM 12ST 7TE H OM3 BL | 0,35 kg |
| 134013 | Spleißmodul SM 12ST 7TE H OM4 BL | 0,35 kg |
| 134014 | Spleißmodul SM 12ST 7TE H OS2 UPC BL | 0,35 kg |
| 134015 | Spleißmodul SM 6E2000 DX-C 7TE H OM3 RdM BL | 0,35 kg |
| 134016 | Spleißmodul SM 6E2000 DX-C 7TE H OM4 RdM BL | 0,35 kg |
| 134017 | Spleißmodul SM 6E2000 DX-C 7TE H OS2 APC RdM BL | 0,35 kg |
| 134018 | Spleißmodul SM 6E2000 DX-C 7TE H OS2 UPC RdM BL | 0,35 kg |
| 134019 | Spleißmodul SM 12E2000 DX-C 7TE H OM3 RdM BL | 0,35 kg |
| 134020 | Spleißmodul SM 12E2000 DX-C 7TE H OM4 RdM BL | 0,35 kg |
| 134021 | Spleißmodul SM 12E2000 DX-C 7TE H OS2 APC RdM BL | 0,35 kg |
| 134022 | Spleißmodul SM 12E2000 DX-C 7TE H OS2 UPC RdM BL | 0,35 kg |
| 134023 | Spleißmodul SM 6LC DX 7TE H OM5 BL | 0,33 kg |
| 134024 | Spleißmodul SM 6LC QUAD 7TE H OM5 BL | 0,33 kg |
| 137000 | Spleißmodul SM 6LC DX 7TE H OM3 GR | 0,31 kg |
| 137001 | Spleißmodul SM 6LC DX 7TE H OM4 GR | 0,31 kg |
| 137002 | Spleißmodul SM 6LC DX 7TE H OS2 APC GR | 0,31 kg |
| 137003 | Spleißmodul SM 6LC DX 7TE H OS2 UPC GR | 0,31 kg |
| 137004 | Spleißmodul SM 6LC QUAD 7TE H OM3 GR | 0,33 kg |
| 137005 | Spleißmodul SM 6LC QUAD 7TE H OM4 GR | 0,33 kg |
| 137006 | Spleißmodul SM 6LC QUAD 7TE H OS2 APC GR | 0,33 kg |
| 137007 | Spleißmodul SM 6LC QUAD 7TE H OS2 UPC GR | 0,33 kg |
| 137008 | Spleißmodul SM 6SC DX 7TE H OM3 GR | 0,35 kg |
| 137009 | Spleißmodul SM 6SC DX 7TE H OM4 GR | 0,35 kg |
| 137010 | Spleißmodul SM 6SC DX 7TE H OS2 APC GR | 0,35 kg |
| 137011 | Spleißmodul SM 6SC DX 7TE H OS2 UPC GR | 0,35 kg |
| 137012 | Spleißmodul SM 12ST 7TE H OM3 GR | 0,35 kg |
| 137013 | Spleißmodul SM 12ST 7TE H OM4 GR | 0,35 kg |
| 137014 | Spleißmodul SM 12ST 7TE H OS2 UPC GR | 0,35 kg |
| 137015 | Spleißmodul SM 6E2000 DX-C 7TE H OM3 RdM GR | 0,35 kg |
| 137016 | Spleißmodul SM 6E2000 DX-C 7TE H OM4 RdM GR | 0,35 kg |
| 137017 | Spleißmodul SM 6E2000 DX-C 7TE H OS2 APC RdM GR | 0,35 kg |
| 137018 | Spleißmodul SM 6E2000 DX-C 7TE H OS2 UPC RdM GR | 0,35 kg |
| 137019 | Spleißmodul SM 12E2000 DX-C 7TE H OM3 RdM GR | 0,35 kg |
| 137020 | Spleißmodul SM 12E2000 DX-C 7TE H OM4 RdM GR | 0,35 kg |
| 137021 | Spleißmodul SM 12E2000 DX-C 7TE H OS2 APC RdM GR | 0,35 kg |
| 137022 | Spleißmodul SM 12E2000 DX-C 7TE H OS2 UPC RdM GR | 0,35 kg |
| 137023 | Spleißmodul SM 6LC DX 7TE H OM5 GR | 0,33 kg |
| 137024 | Spleißmodul SM 6LC QUAD 7TE H OM5 GR | 0,33 kg |
Four reasons to plan the module level with us
Made in Europe
The F4P systems are manufactured in Europe — short paths from design to production, even for custom populations.
7HP grid across every subrack
The same modules populate SlimConnect 1U, VarioConnect 3U and the DIAMOND 4U chassis — one stock item instead of three.
Data sheet and part number for every version
Every available version is documented. The enquiry goes out with the part number, not with a description.
One connector system across the entire line
The same E-2000® connection level in every form factor: consistent handling, one spare-parts profile, no system breaks in the installed base.
Calculate and configure first, then enquire
Three tools with real part numbers — check the optical budget and put your configuration together live in 3D.
Attenuation budget calculator
Add up connectors, splices and fibre lengths and check the total attenuation against the budget — before the OTDR acceptance test measures it.
Calculate attenuation budget →Subrack configurator
Populate a 19″ subrack slot by slot with splice and front modules — including the bill of materials for your quotation.
Open subrack configurator →Splice box configurator (3D)
Configure form factor, port count, fibre type and polish live — with a real part number for your enquiry.
Open configurator →Datasheet for download
7HP splice modules
Dimensions, versions, order numbers and connection technology.
Open PDF (3 pages) →Frequently Asked Questions about 7HP Splice Modules
Important answers about modular splice modules with 7HP architecture for professional fiber optic distribution in 1U, 3U and 4U systems
What does 7HP module architecture mean for splice modules?
Standardized construction width: 7 horizontal pitches (7HP = 35mm) correspond to the proven Eurocard format for maximum compatibility.
Modular flexibility: All modules have uniform dimensions and can be freely combined in VarioConnect module carriers.
Scalable capacity: Available as 6-, 12- and 24-fiber modules for demand-oriented configuration.
System compatibility: Can be used in 1U, 3U and 4U systems without restrictions.
Which connector types are supported in the 7HP modules?
LC connectors: Standard for modern fiber optic networks with high packing density and duplex connections.
SC connectors: Proven for backbone connections and industrial long-distance applications.
E2000 DIAMOND: Swiss precision with automatic shutter cap system for the highest demands.
MTP/MPO connectors: For high-speed connections and maximum port density in data centers.
Uniform per module: Each module is optimized for a specific connector type.
How does the modular scaling from 6 to 288 fibers work?
1U systems: Up to 3 modules (max. 72 fibers) for compact installations.
3U systems: Up to 12 modules (max. 288 fibers) for medium requirements.
DIAMOND 4U subrack: Up to 12 pull-out compact modules, 7HP (max. 144 fibres) — with integrated 1U cable slack drawer.
Granular expansion: Start with few modules and expand gradually without system change.
Flexible module exchange: Modules can be replaced at any time for other connector types or fiber counts.
What are the advantages of the pull-out modules?
Service-friendly maintenance: Modules can be completely pulled out for optimal access to all splice cassettes.
Uninterrupted operation: Maintenance without affecting adjacent connections during operation.
Easy access: All fibers and splice points are easily accessible for installation and repair work.
Module exchange possible: Complete modules can be replaced if needed for technology upgrades.
For which applications are 7HP splice modules suitable?
Data centers: High-density fiber optic distribution with various speeds from 10G to 400G.
Wind turbines: Robust splicing technology for SCADA systems and renewable energy connections.
Transportation companies: Secure fiber optic connections for rail, subway and traffic control systems.
Industrial facilities: Reliable network infrastructure for Industry 4.0 and Smart Factory applications.
Telecommunications: Flexible splicing solutions for carriers and network operators in FTTH expansion.
Which operating conditions are supported?
Operating temperature: 0°C to +60°C for air-conditioned indoor spaces and technical rooms.
Optimized fiber routing: Precise splice cassettes with controlled bending radii for longevity.
Robust construction: European manufacturing quality.
Indoor optimized: Specially developed for professional IT and telecommunications environments.
What distinguishes the 7HP modules from other splicing solutions?
Unique modularity: Continuous 7HP architecture for all system sizes from 1U to 4U.
European quality: European manufacturing for maximum investment security.
Universal compatibility: Modules can be used in various VarioConnect systems.
Future-proof: Module change instead of system change with technology changes or expansions.
Service-friendly: Pull-out construction for maintenance-friendly installation.
How are the modules ordered and configured?
Directly available: All 7HP modules are available in the online shop with competitive prices.
Individual consultation: Project-specific system design based on your requirements.
Modular selection: Choose from 6-, 12- and 24-fiber modules in various connector types.
Complete systems possible: From individual modules to fully equipped systems available.
Technical support: Comprehensive support in planning and integration into existing systems.
Datasheets for download
Everything on this page as a PDF — for tenders, planning and sharing within the project.
7HP splice modules
Dimensions, configurations, order numbers and connection technology for the 7HP splice modules line.
Open PDF (PDF · 3 pages) →19″ subracks
Dimensions, configurations, order numbers and connection technology for the 19″ subracks line.
Open PDF (PDF · 1 page) →Full catalogue
The complete range at a glance — splice boxes, modules, subracks, cable management and the DIAMOND product line.
Open PDF (PDF · 20 pages) →
Find the right configuration
Tell us the application, fibre count and connection technology — we will propose the version that fits.
Request a consultationProject pricing and volume discounts on request. Lead time depends on the project — you receive the binding date with the quotation.
Related products
The same system technology, a different form factor and different fields of application.
Where this line is used
The same technology in different environments — these pages describe what each sector needs.
Public utilities
Municipal fiber optic networks and FTTH expansion for sustainable digital infrastructure
View industry solution →
Data centers
Space-saving high-performance solutions for maximum port density and rack efficiency
View industry solution →
Industry
Robust fiber optic systems for demanding industrial environments and Industry 4.0
View industry solution →
