7HP front modules
7HP front modules for patching and distribution levels, matching the same 7HP grid as the splice modules.
Planning the patching level: three points that decide the installation space
Not every level needs a winding mechanism — where there is only patching, every rack unit saved counts.
Patching instead of splicing
Not every level needs a winding mechanism. Where there is only patching, the front module saves installation space and money.
One rack unit is enough
The front module was developed for installation in the 1U subrack — no base carrier, no surcharge.
Mixed population
Splice modules and front modules in the same subrack: the distribution level follows the task, not the catalogue.
What defines this line
Characteristics shared by every version.
Compatible with subracks from other manufacturers
Splice tray for a maximum of 24 crimp splices
Front module for installation in 1U subracks
Includes pigtail set, adapter, splice tray and splice comb
Front panel labelled 1–12 (other labelling available on request)
Connection technology at a glance
Each version comes in several fibre grades — the form factor stays the same.
OM3 · OM4 · OM5 · OS2

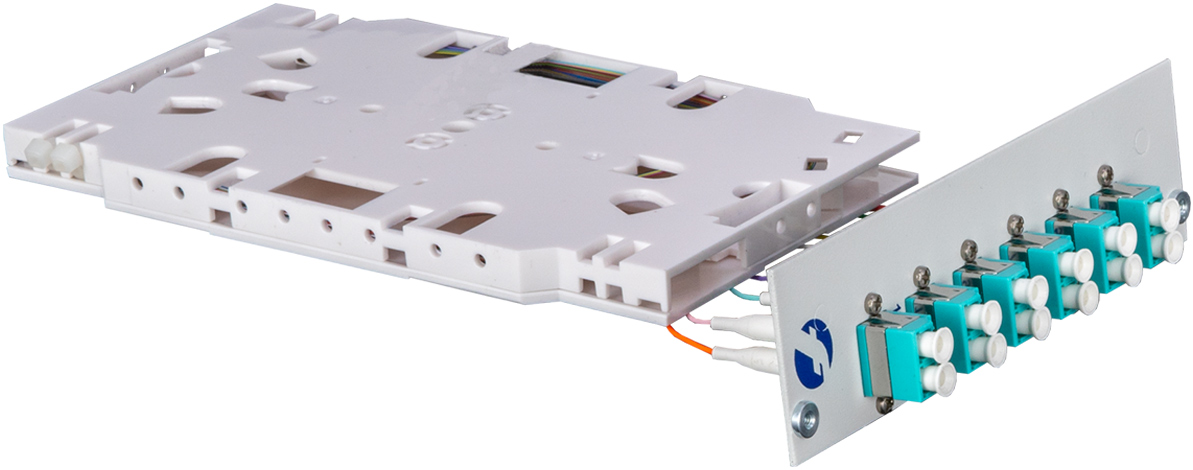

6× LC DX
17 versions · from order no. 147000
OM3 · OM4 · OM5 · OS2

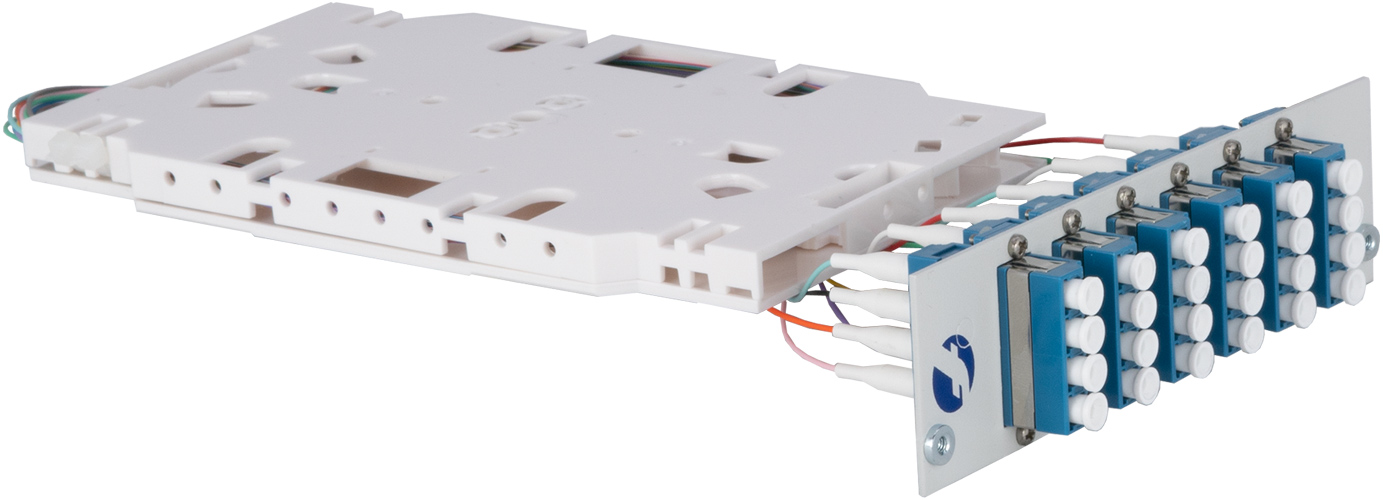

6× LC QUAD
10 versions · from order no. 147004
OM3 · OM4 · OM5 · OS2

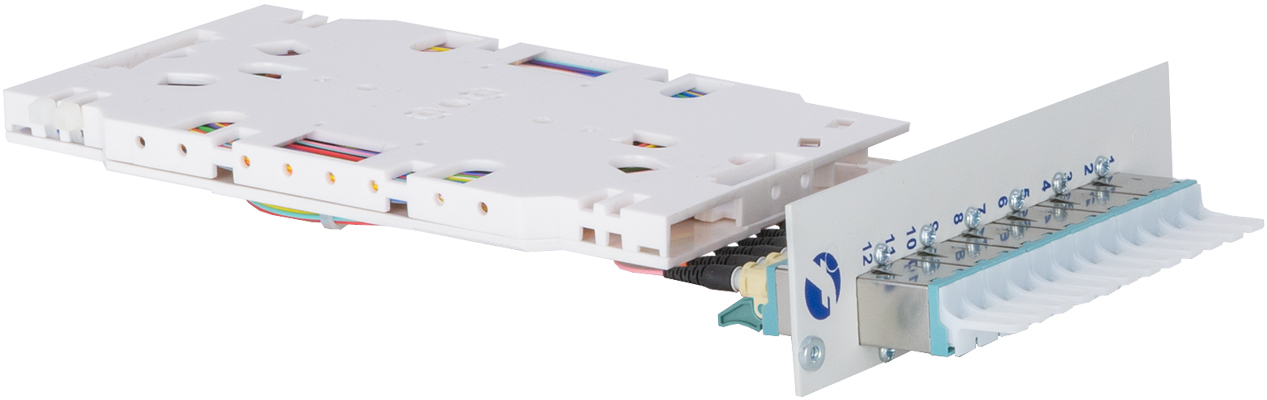

6× E2000 DX-C
10 versions · from order no. 147015
OM3 · OM4 · OS2

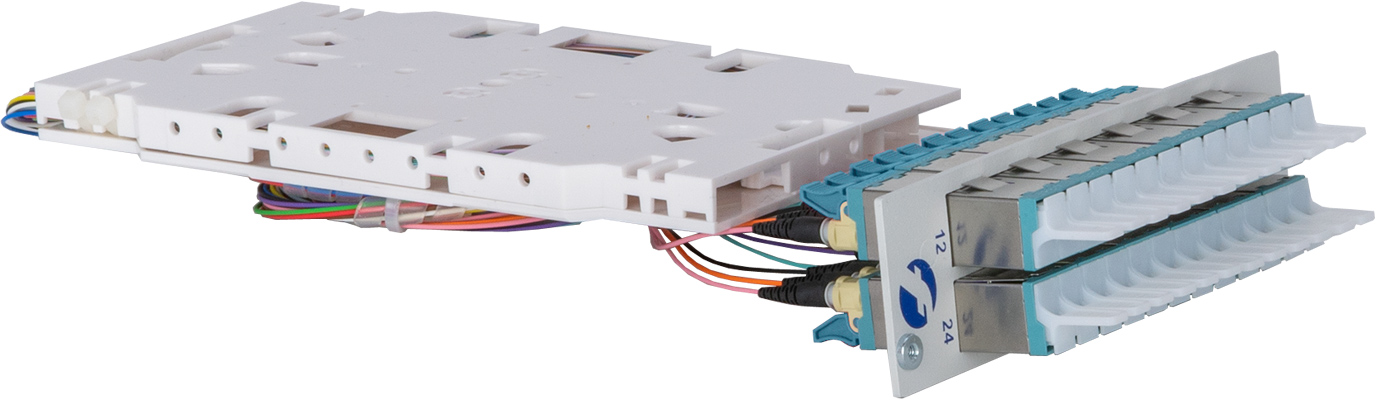

12× E2000 DX-C
8 versions · from order no. 147019
OM3 · OM4 · OS2

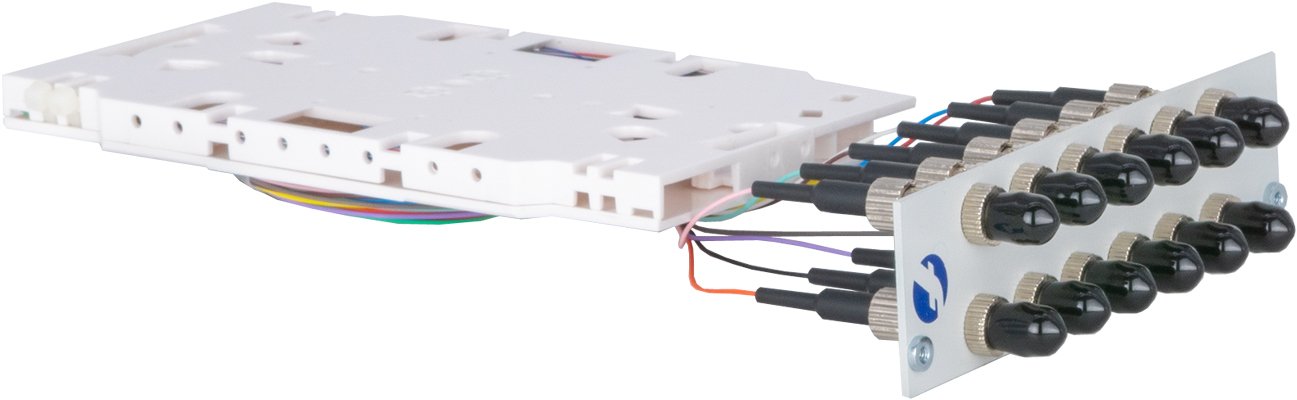

12× ST
6 versions · from order no. 147012
OM3

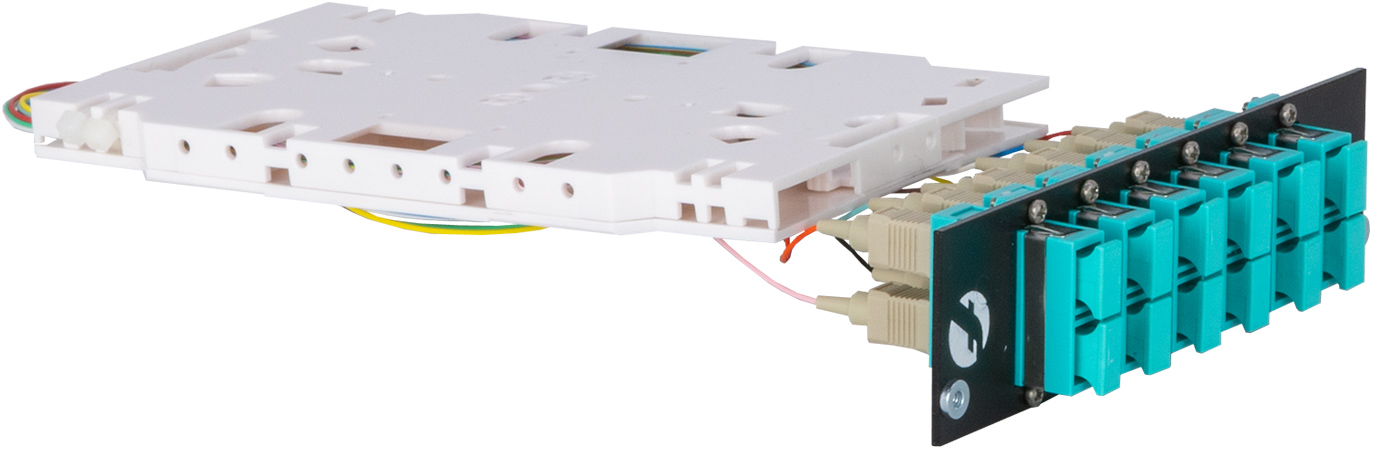

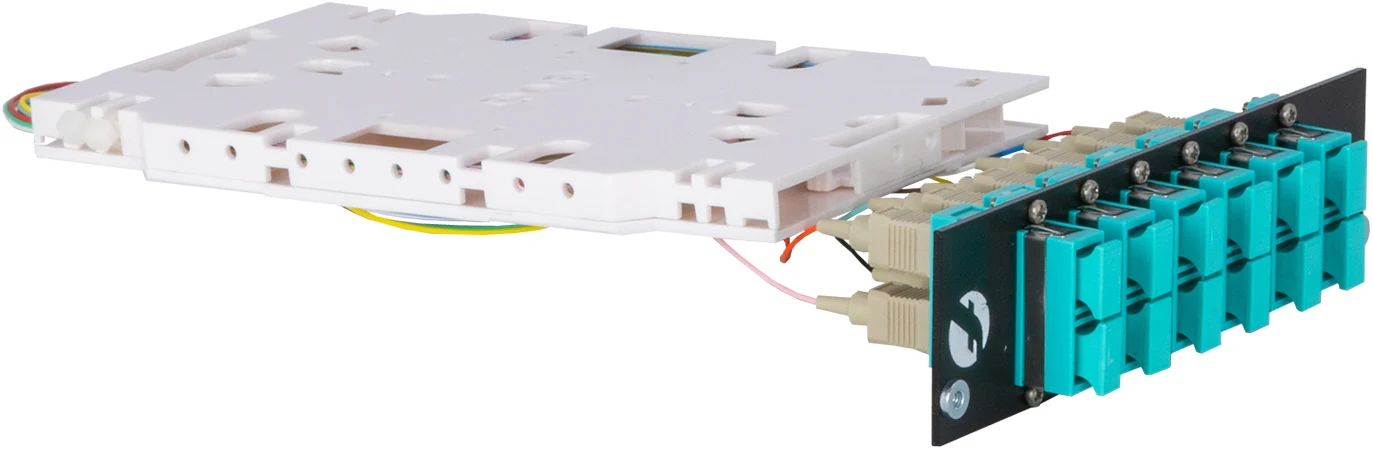

6× SC DX
1 versions · from order no. 144008
Characteristics of the 7HP front modules line
How to read the fibre grade off the module without looking up the datasheet.
Technical data
Tabelle seitlich scrollbar
| Version | 12E2000 DX-C 7TE H, 12ST 7TE H, 6E2000 DX-C 7TE H, 6LC DX 7TE H, 6LC QUAD 7TE H, 6SC DX 7TE H |
| Couplings | 12, 12 (Grade B, RdM), 6, 6 (Grade B, RdM) |
| Pigtails | 12, 12 (DIAMOND), 12 (Grade B, RdM), 24, 24 (Grade B, RdM) |
| Fibre grade | OM3, OM4, OM5, OS2 APC, OS2 UPC |
| Fibre type | 50/125μ, 9/125μ |
| Coupling colour | Aqua, Blau, Grün, Grün-Gelb, Lindgrün, Rot … |
| Coupling material | Kunststoff, Metall |
| Height | 3HE |
| Width | 7TE |
| Colour | RAL7035 / Grau, RAL9005 / Schwarz |
Coupling colour and fibre grade
OM3
OM4
OM5
OS2 APC
OS2 UPC
No base carrier, no surcharge
The front module has no winding mechanism and therefore needs no base carrier. The scope of supply includes the pigtail set, adapter, splice cassette and splice comb — this is the compact solution when only one rack unit is free in the rack.
Versions and order numbers
Every version in this line with its order number. Prices on request and in the shop for registered customers.
52 items — show all
Tabelle seitlich scrollbar
| Order number | Designation | Weight |
|---|---|---|
| 144000 | Frontmodul FM 6LC DX 7TE H OM3 BL | 0,12 kg |
| 144001 | Frontmodul FM 6LC DX 7TE H OM4 BL | 0,12 kg |
| 144002 | Frontmodul FM 6LC DX 7TE H OS2 APC BL | 0,12 kg |
| 144003 | Frontmodul FM 6LC DX 7TE H OS2 UPC BL | 0,12 kg |
| 144004 | Frontmodul FM 6LC QUAD 7TE H OM3 BL | 0,14 kg |
| 144005 | Frontmodul FM 6LC QUAD 7TE H OM4 BL | 0,14 kg |
| 144006 | Frontmodul FM 6LC QUAD 7TE H OS2 APC BL | 0,14 kg |
| 144007 | Frontmodul FM 6LC QUAD 7TE H OS2 UPC BL | 0,14 kg |
| 144008 | Frontmodul FM 6SC DX 7TE H OM3 BL | 0,16 kg |
| 144009 | Frontmodul FM 6LC DX 7TE H OM4 BL | 0,16 kg |
| 144010 | Frontmodul FM 6LC DX 7TE H OS2 APC BL | 0,16 kg |
| 144011 | Frontmodul FM 6LC DX 7TE H OS2 UPC BL | 0,16 kg |
| 144012 | Frontmodul SM 12ST 7TE H OM3 BL | 0,35 kg |
| 144013 | Frontmodul FM 12ST 7TE H OM4 BL | 0,35 kg |
| 144014 | Frontmodul FM 12ST 7TE H OS2 UPC BL | 0,35 kg |
| 144015 | Frontmodul FM 6E2000 DX-C 7TE H OM3 RdM BL | 0,35 kg |
| 144016 | Frontmodul FM 6E2000 DX-C 7TE H OM4 RdM BL | 0,35 kg |
| 144017 | Frontmodul FM 6E2000 DX-C 7TE H OS2 APC RdM BL | 0,35 kg |
| 144018 | Frontmodul FM 6E2000 DX-C 7TE H OS2 UPC RdM BL | 0,35 kg |
| 144019 | Frontmodul FM 12E2000 DX-C 7TE H OM3 RdM BL | 0,31 kg |
| 144020 | Frontmodul FM 12E2000 DX-C 7TE H OM4 RdM BL | 0,31 kg |
| 144021 | Frontmodul FM 12E2000 DX-C 7TE H OS2 APC RdM BL | 0,31 kg |
| 144022 | Frontmodul FM 12E2000 DX-C 7TE H OS2 UPC RdM BL | 0,31 kg |
| 144023 | Frontmodul FM 6LC DX 7TE H OM5 BL | 0,12 kg |
| 144024 | Frontmodul FM 6LC QUAD 7TE H OM5 BL | 0,14 kg |
| 144025 | Frontmodul FM 6E2000 DX-C 7TE H OM5 RdM BL | 0,35 kg |
| 147000 | Frontmodul FM 6LC DX 7TE H OM3 GR | 0,12 kg |
| 147001 | Frontmodul FM 6LC DX 7TE H OM4 GR | 0,12 kg |
| 147002 | Frontmodul FM 6LC DX 7TE H OS2 APC GR | 0,12 kg |
| 147003 | Frontmodul FM 6LC DX 7TE H OS2 UPC GR | 0,12 kg |
| 147004 | Frontmodul FM 6LC QUAD 7TE H OM3 GR | 0,14 kg |
| 147005 | Frontmodul FM 6LC QUAD 7TE H OM4 GR | 0,14 kg |
| 147006 | Frontmodul FM 6LC QUAD 7TE H OS2 APC GR | 0,14 kg |
| 147007 | Frontmodul FM 6LC QUAD 7TE H OS2 UPC GR | 0,14 kg |
| 147008 | Frontmodul FM 6LC DX 7TE H OM3 GR | 0,16 kg |
| 147009 | Frontmodul FM 6LC DX 7TE H OM4 GR | 0,16 kg |
| 147010 | Frontmodul FM 6LC DX 7TE H OS2 APC GR | 0,16 kg |
| 147011 | Frontmodul FM 6LC DX 7TE H OS2 UPC GR | 0,16 kg |
| 147012 | Frontmodul SM 12ST 7TE H OM3 GR | 0,35 kg |
| 147013 | Frontmodul FM 12ST 7TE H OM4 GR | 0,35 kg |
| 147014 | Frontmodul FM 12ST 7TE H OS2 UPC GR | 0,35 kg |
| 147015 | Frontmodul FM 6E2000 DX-C 7TE H OM3 RdM GR | 0,35 kg |
| 147016 | Frontmodul FM 6E2000 DX-C 7TE H OM4 RdM GR | 0,35 kg |
| 147017 | Frontmodul FM 6E2000 DX-C 7TE H OS2 APC RdM GR | 0,35 kg |
| 147018 | Frontmodul FM 6E2000 DX-C 7TE H OS2 UPC RdM GR | 0,35 kg |
| 147019 | Frontmodul FM 12E2000 DX-C 7TE H OM3 RdM GR | 0,31 kg |
| 147020 | Frontmodul FM 12E2000 DX-C 7TE H OM4 RdM GR | 0,31 kg |
| 147021 | Frontmodul FM 12E2000 DX-C 7TE H OS2 APC RdM GR | 0,31 kg |
| 147022 | Frontmodul FM 12E2000 DX-C 7TE H OS2 UPC RdM GR | 0,31 kg |
| 147023 | Frontmodul FM 6LC DX 7TE H OM5 GR | 0,12 kg |
| 147024 | Frontmodul FM 6LC QUAD 7TE H OM5 GR | 0,14 kg |
| 147025 | Frontmodul FM 6E2000 DX-C 7TE H OM5 RdM GR | 0,35 kg |
