DIAMOND patch panels and boxes

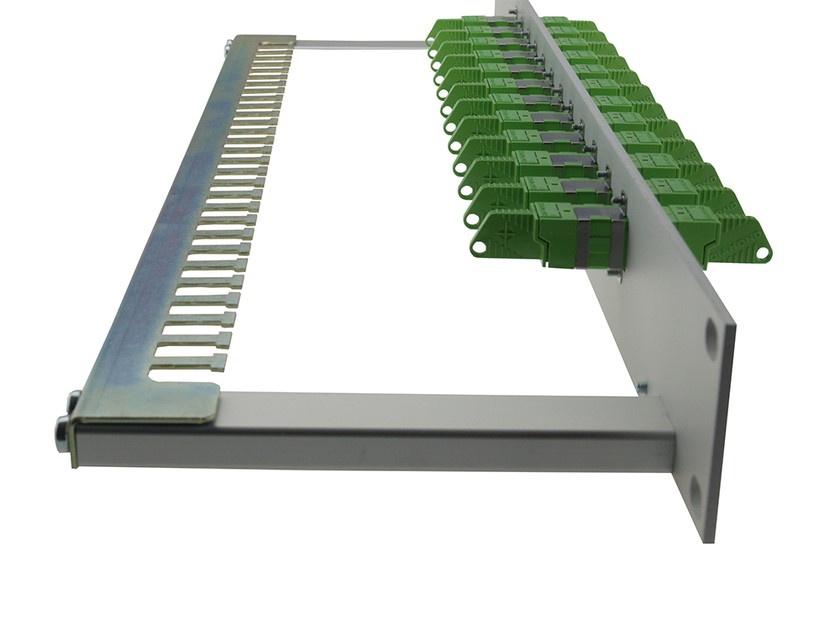

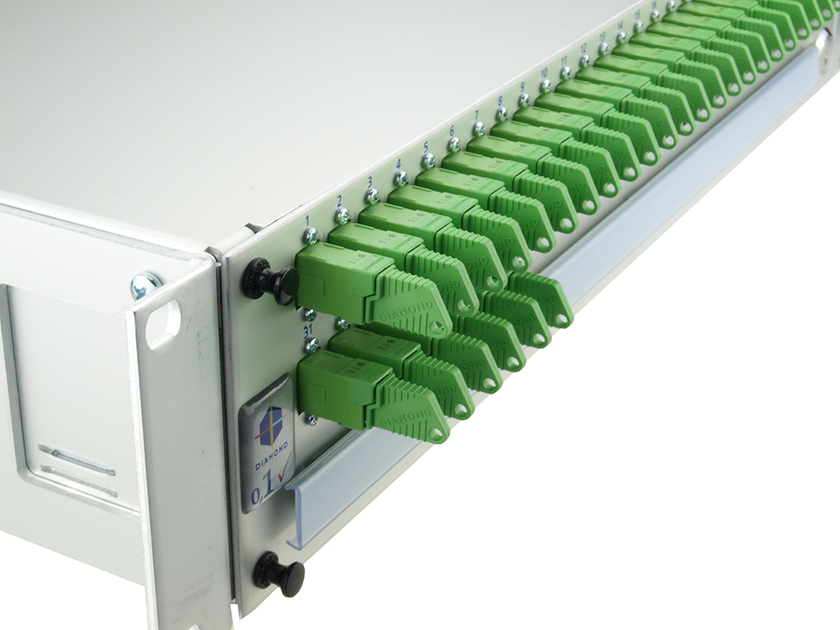

Future Box, Fusion Box and patch panels with E-2000 connectors. Fiber Products is an authorised distribution partner of DIAMOND SA.
Patch panel and splice level: three points that keep the intervention small
If you mix patching and splicing, every change means reaching into both levels.
Keep patch panel and splice level apart
Mixing the two means reaching into the splice level every time you patch. Separate levels keep the intervention small.
Swiss connector engineering
E-2000 with typ. ≤ 0.1 dB and a spring-loaded protective shutter — where the attenuation budget is tight.
The form factor follows the location
Whether 19-inch panel or enclosed box — the connection level stays the same.
Connection technology at a glance
Each version comes in several fibre grades — the form factor stays the same.
Version
E-2000
33 versions · from order no. 109034
Version
weitere
4 versions · from order no. 109050
Characteristics of the DIAMOND patch panels and boxes line
Every version in this line with its order number. Prices on request and in the shop for registered customers.
Characteristics of the DIAMOND patch panels and boxes line
| Connector type | E-2000 |
|---|---|
| Polish | APC |
| IP rating | IP65 |
| Version | Simplex (SX) |
| Couplings | 12, 24, 3, 36, 48, 6 … |
| Pigtails | With pigtails, without pigtails |
| Fibre type | 50/125µ OM4, 9/125µ SM |
| Height | 1HE, 2HE, 4HE |
Dust protection is built in, not bolted on
The spring-loaded shutter over the end face closes automatically as soon as the connector is withdrawn. In dust-prone environments, that is the difference between a clean end face and rework on site.
Versions and order numbers
37 items — show all
| Order number | Designation |
|---|---|
| 109000 | DIAMOND BGT 4HE mit Kabelwanne G7G7-120-02FV4HE |
| 109001 | DIAMOND BGT 4HE mit Kabelbügel G7G7-120-03FV4HE |
| 109002 | DIAMOND Fusion-Box 24E-2000 SX o. Pigtails G7G1-24S-000V432 |
| 109003 | DIAMOND Fusion-Box 1HE 24-E2000 Comp. RJ SM APC G7G3-24R-048V412 |
| 109004 | DIAMOND Fusion-Box 1HE 6-E2000 Comp. RJ SM APC G7G3-06R-012V212 |
| 109005 | DIAMOND Fusion-Box 1HE 12-E2000 Comp. RJ SM APC o. Pigtails G7G3-12R-000V232 |
| 109006 | DIAMOND Fusion-Box 1HE 24-E2000 Comp. RJ SM APC o. Pigtails G7G3-24R-000V432 |
| 109007 | DIAMOND Future-Box 1HE kurz 12-E2000 Comp. RJ SM APC 45° G7G4-12R-L24V212 |
| 109008 | DIAMOND Future-Box 1HE kurz 6-E2000 Comp. RJ SM APC 45° G7G4-06R-L12V212 |
| 109009 | DIAMOND Future-Box 1HE 12-E2000 SX SM APC IP65 G7G1-12SI-012V418 |
| 109010 | DIAMOND Future-Box 1HE 12-E2000 Comp. RJ SM APC G7G1-12R-024V412 |
| 109012 | DIAMOND Future-Box 1HE 24-E2000 Comp. RJ SM APC G7G1-24R-048V412 |
| 109013 | DIAMOND Fusion-Box 1HE 12-E2000 SX SM APC G7G3-12S-012V412 |
| 109014 | DIAMOND Fusion-Box 1HE 24-E2000 SX SM APC G7G3-24S-024V412 |
| 109015 | DIAMOND Fusion-Box 1HE 12-E2000 Comp. RJ SM APC G7G3-12R-024V212 |
| 109016 | DIAMOND Future-Box 2HE 36-E2000 Comp. RJ SM APC G7G2-36R-072V612 |
| 109017 | DIAMOND Future-Box 1HE 24-E2000 SX SM APC G7G1-24S-024V412 |
| 109018 | DIAMOND Future-Box 2HE 48-E2000 Comp. RJ SM G7G2-48R-096V612 |
| 109020 | DIAMOND Future-Box 2HE 48-E2000 SX SM APC G7G2-48S-048V612 |
| 109021 | DIAMOND Future-Box 1HE 12-E2000 SX SM APC G7G1-12S-012V412 |
| 109022 | DIAMOND Future-Box 1HE kurz 6-E2000 SX SM APC G7G4-6S-006V212 |
| 109023 | DIAMOND Future-Box 1HE kurz 12-E2000 SX SM APC G7G4-12S-012V412 |
| 109024 | DIAMOND Future-Box 1HE kurz 24-E2000 SX SM APC G7G4-24S-024V412 |
| 109028 | DIAMOND Future-Box 1HE kurz 6-E2000 Comp. RJ SM APC G7G4-06R-012V212 |
| 109032 | DIAMOND Future-Box 1HE 6-E2000 Comp. RJ SM APC G7G1-06R-012V212 |
| 109033 | DIAMOND Future-Box 1HE 12-E2000 Comp. RJ SM APC G7G1-12R-024V212 |
| 109034 | DIAMOND Patchpanel 1HE 12-E2000 Comp. RJ SM APC G7G5-12R-000V202 |
| 109035 | DIAMOND Future-Box 1HE 24-E2000 RJ Comp OM4 G7G1-24R-048V416 |
| 109036 | DIAMOND Future-Box 1HE 3-E2000 Comp. RJ SM APC G7G1-03R-006V212 |
| 109037 | DIAMOND BGT 4HE mit Frontblende G7G7-120-01FV4HE |
| 109038 | DIAMOND Future-Box 2HE 60-E2000 SX SM APC G7G2-60S-060V812 |
| 109041 | DIAMOND Fusion-Box 2HE 48-E2000 Comp. RJ SM G7G3-48R-096V612 |
| 109042 | DIAMOND Future-Box 1HE 24-E2000 RJ Comp OM4 GSON-24M-00FV124 |
| 109044 | DIAMOND Future-Box 1HE 12-E2000 Comp.RJ SM APC Teleskop – G7G1-12R-024T212 |
| 109045 | DIAMOND Future-Box 2HE 48-E2000 SX SM APC, Teleskop – G7G2-48S-048T912 |
| 109046 | DIAMOND Future-Box 2HE 48-E2000 SX SM APC mit FP 48-fach SX – G7G2-48S-048T512 |
| 109050 | DIAMOND Future-Box 2HE, leer mit FP 60-fach SX – G7G2-00S-000V830 |
Four reasons to source the patch panel from us
Authorised distribution partner of DIAMOND SA
Swiss precision from a single source — E-2000® with typ. ≤ 0.1 dB insertion loss and a spring-loaded laser protection shutter.
E-2000® across the whole family
Patch panels and boxes use the same connection level as the other DIAMOND form factors — one connector interface throughout the distribution frame.
Data sheet and part number for every version
Every available version is documented. The enquiry goes out with the part number, not with a description.
One connector system across the entire line
The same E-2000® connection level in every form factor: consistent handling, one spare-parts profile, no system breaks in the installed base.
Calculate and configure first, then enquire
Three tools with real part numbers — check the optical budget and put your configuration together live in 3D.
Attenuation budget calculator
Add up connectors, splices and fibre lengths and check the total attenuation against the budget — before the OTDR acceptance test measures it.
DIAMOND configurator (3D)
Configure Future and Fusion Box with E-2000 live — with a real part number for each configuration, ready for your enquiry.
Subrack configurator
Populate a 19″ subrack slot by slot with splice and front modules — including the bill of materials for your quotation.
Datasheet for download
DIAMOND patch panels and boxes
Dimensions, versions, order numbers and connection technology.
Where this line is used
The same technology in different environments — these pages describe what each sector needs.
Wind power & offshore
Robust fiber optic solutions for renewable energies and offshore plants
Network operators
Professional fiber optic solutions for stable and scalable network infrastructures
Data centers
Space-saving high-performance solutions for maximum port density and rack efficiency
Datasheets for download
Everything on this page as a PDF — for tenders, planning and sharing within the project.
DIAMOND patch panels and boxes
Dimensions, configurations, order numbers and connection technology for the DIAMOND patch panels and boxes line.
DIAMOND compact modules
Dimensions, configurations, order numbers and connection technology for the DIAMOND compact modules line.
Full catalogue
The complete range at a glance — splice boxes, modules, subracks, cable management and the DIAMOND product line.
Find the right configuration
Tell us the application, fibre count and connection technology — we will propose the version that fits.
Project pricing and volume discounts on request. Lead time depends on the project — you receive the binding date with the quotation.
