DIAMOND compact modules
Compact modules for the modular DIAMOND system, 3U/7HP.
Compact modules: three points where the subrack gets tight
Twice the port count on the same front width also means twice as many patch cables in front of the same front panel.
The subrack is full
When the rack has no rack unit left to give, the port count has to come out of the existing front panel.
E-2000 or F-3000?
Two connector systems, one module grid — the decision is made by the installed base, not by the catalogue.
Patching at a full front panel
Higher density means more cables in the same width. Without cable management, every intervention turns into a hunt.
Connection technology at a glance
Each version comes in several fibre grades — the form factor stays the same.
Version
E-2000
4 versions · from order no. 139002
Version

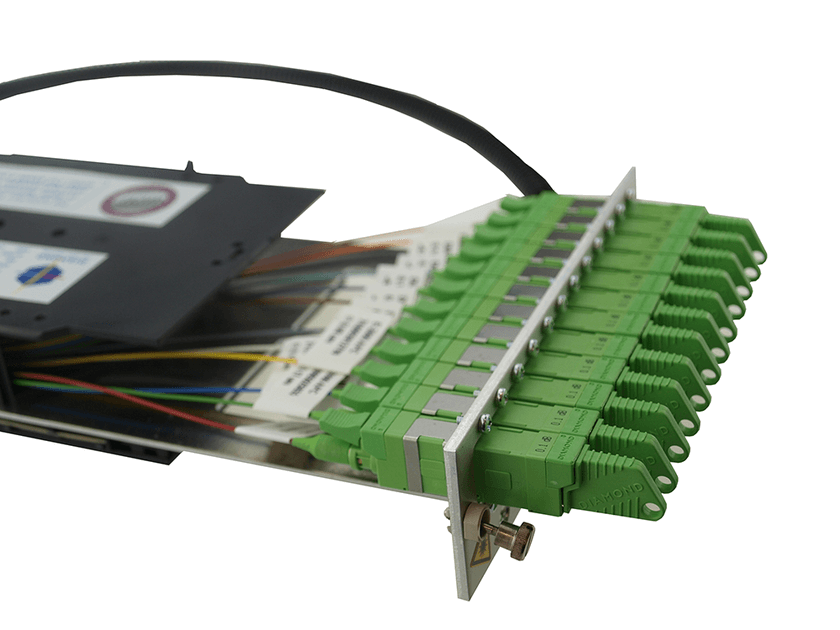

F-3000
1 versions · from order no. 139005
Characteristics of the DIAMOND compact modules line
Technical data
Tabelle seitlich scrollbar
| Connector type | E-2000, F-3000 |
|---|---|
| Polish | APC |
| Version | Duplex (Compact RJ), Duplex (DX), Simplex (SX) |
| Pigtails | Inklusive Pigtails, Ohne Pigtails |

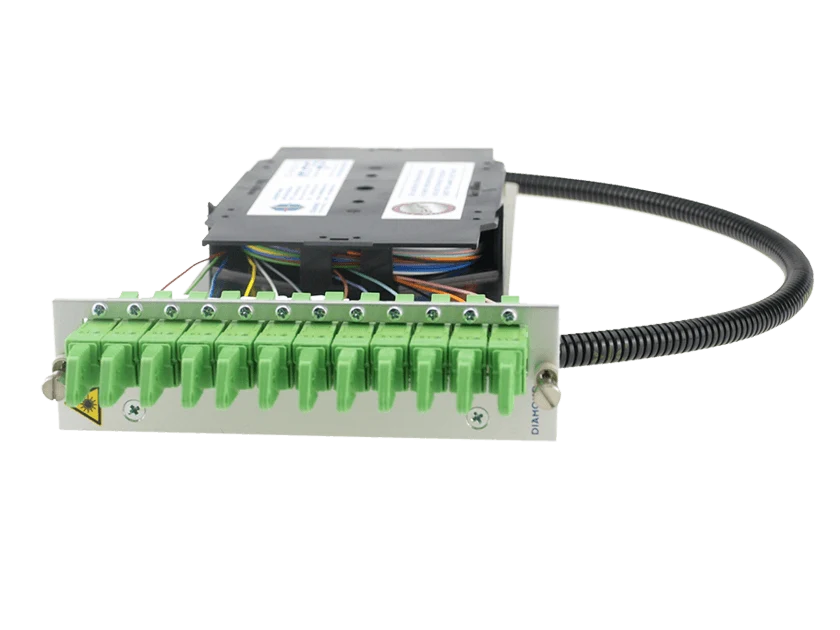

DIAMOND Compact Modules & Front Modules (7TE)
Pull-out 7TE inserts for the DIAMOND 4U Carrier System and compatible Fiber Products chassis. Scalable, modular fibre distribution — up to 12 modules per 4U carrier, populated with E-2000® APC and CompactRJ couplings. Deploy as needed, expand over time.
What Compact Modules Are

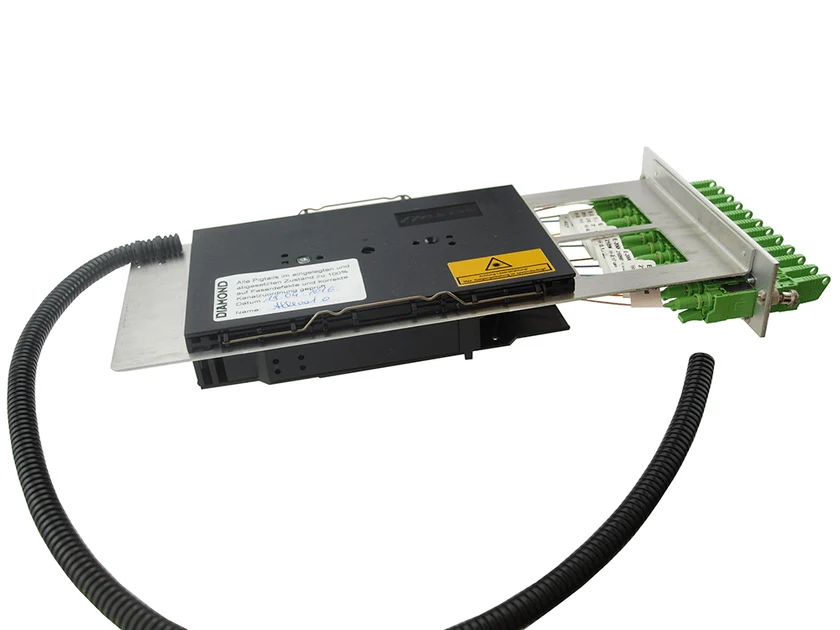

Compact Modules are 7TE slide-in inserts that snap into a 4U chassis. The chassis provides power-free mechanical mounting; each module brings its own fibre management, splicing area and connector population. The 7TE format is DIAMOND’s standardised slot size, allowing different module types to coexist in the same chassis.
The key benefit is staged rollout: you can populate a 4U carrier with a single module on day one and add modules over years as fibre demand grows — without disturbing the existing infrastructure.
Variants and Capacities
Tabelle seitlich scrollbar
| Module Type | Connector Configuration | Typical Capacity |
|---|---|---|
| Compact Module (Splice + Patch) | E-2000® CompactRJ | Up to 12 fibres per module |
| Front Module (Patch only) | E-2000® APC or CompactRJ | Up to 12 ports per module |
| Custom configurations | Mixed APC / Compact / LC adapters | As specified |
With 12 modules in a 4U carrier, the system reaches up to 144 fibres in 4U — competitive density without sacrificing the modular service architecture.
Connector System
All Compact Modules use the DIAMOND E-2000® system in the standard colour coding:
- Singlemode APC (green) — backbone-grade, low return loss
- Singlemode PC (blue) — legacy compatibility
- Multimode (OM3, OM4, 62.5 μm) — in-building and campus
Active Core Alignment (ACA) technology delivers typical insertion loss ≤ 0.1 dB per coupling. IP65-protected variants available on request.
Quality Assurance
Each module ships with individual pigtail measurement and per-pigtail test certificate (end-face, tilt angle ≤ 0.4°, concentricity ≤ 0.25 μm, final inspection mark). Available on request.
Typical Deployment
- Data centres: 4U chassis as central distribution hub, modules populated by service zone
- FTTH headends: Staged expansion as subscriber count grows
- Campus networks: Departmental modules in a shared chassis
- Service-friendly racks: Module swap without disturbing the chassis
Available Through Fiber Products
Following the DIAMOND press release of 27 April 2026, Fiber Products GmbH is the central supplier for the DIAMOND 19″ enclosure technology including Compact Modules and the carrier system. DIAMOND continues to manufacture all connector components in Losone; Fiber Products handles DACH supply and configuration.
- Compact Modules and Front Modules — all 7TE variants
- 4U Carrier System (see Carrier System) — accommodates up to 12 modules
- F4P-built custom modules — Manufacturer warranty
- German logistics with fast DACH delivery
- Module configuration advice via our contact form
Know your variant?
Tell us your connector configuration — E-2000® APC or LC, with or without pigtails — and we’ll prepare a quote for your module mix.
Plan your Compact Module configuration
Tell us your fibre count, expansion plan and chassis setup — we recommend the right module mix.
E-2000® with spring-loaded laser protection shutter
Every adapter closes automatically when the connector is withdrawn. That protects both the eye and the end face — in a densely populated front panel where connections are made often, that is not a convenience feature but operational safety.
Versions and order numbers
Every version in this line with its order number. Prices on request and in the shop for registered customers.
5 items — show all
Tabelle seitlich scrollbar
| Order number | Designation |
|---|---|
| 139001 | DIAMOND Kompaktmodul KM 6x E-2000 APC Comp. RJ G7G8-06R-012V112 |
| 139002 | DIAMOND Kompaktmodul KM 12x E-2000 APC SX G7G8-12S-012V212 |
| 139003 | DIAMOND Kompaktmodul KM 12x E-2000 APC SX o. Pigtails G7G8-12S-000V212 |
| 139004 | DIAMOND Kompaktmodul KM 6x E-2000 APC Comp. RJ o. Pigtails G7G8-06R-000V212 |
| 139005 | DIAMOND Kompaktmodul KM 12x F-3000 APC DX G7G8-12F-024V212 |
Four reasons to source the compact modules through us
Authorised distribution partner of DIAMOND SA
Swiss precision from a single source — E-2000® with typ. ≤ 0.1 dB insertion loss and a spring-loaded laser protection shutter.
Twice the port density in the familiar 7HP grid
The compact module occupies the same front width as a standard module and takes twice the port count — with no new subrack.
Data sheet and part number for every version
Every available version is documented. The enquiry goes out with the part number, not with a description.
One connector system across the entire line
The same E-2000® connection level in every form factor: consistent handling, one spare-parts profile, no system breaks in the installed base.
Calculate and configure first, then enquire
Three tools with real part numbers — check the optical budget and put your configuration together live in 3D.
Attenuation budget calculator
Add up connectors, splices and fibre lengths and check the total attenuation against the budget — before the OTDR acceptance test measures it.
DIAMOND configurator (3D)
Configure Future and Fusion Box with E-2000 live — with a real part number for each configuration, ready for your enquiry.
Subrack configurator
Populate a 19″ subrack slot by slot with splice and front modules — including the bill of materials for your quotation.
Datasheet for download
DIAMOND compact modules
DIAMOND compact modules
Dimensions, versions, order numbers and connection technology.
Where this line is used
The same technology in different environments — these pages describe what each sector needs.
Public utilities
Municipal fiber optic networks and FTTH expansion for sustainable digital infrastructure
Data centers
Space-saving high-performance solutions for maximum port density and rack efficiency
Network operators
Professional fiber optic solutions for stable and scalable network infrastructures
Datasheets for download
Everything on this page as a PDF — for tenders, planning and sharing within the project.
DIAMOND compact modules
Dimensions, configurations, order numbers and connection technology for the DIAMOND compact modules line.
DIAMOND patch panels and boxes
Dimensions, configurations, order numbers and connection technology for the DIAMOND patch panels and boxes line.
Full catalogue
The complete range at a glance — splice boxes, modules, subracks, cable management and the DIAMOND product line.
Find the right configuration
Tell us the application, fibre count and connection technology — we will propose the version that fits.
Project pricing and volume discounts on request. Lead time depends on the project — you receive the binding date with the quotation.
