E2000 vs MPO: High-Performance Splice Modules with Diamond Connectors
E2000 vs MPO Comparison: High-Performance Splice Modules with Diamond Connectors for Maximum Port Density
The E2000 vs MPO comparison demonstrates that high-performance splice modules with Diamond connectors offer data centres the optimal combination of maximum packing density and precision connector technology for modern fibre optic infrastructure. While E2000 connectors excel through their < 0.25 dB insertion loss and integrated protective shutter, MPO systems with up to 72 fibres per connector enable the highest port density in minimal space.
Data centres face the challenge of managing exponentially growing data volumes while working with limited rack space. The choice between E2000 and MPO splice modules determines the scalability, maintainability and future-readiness of the entire fibre optic infrastructure.
Technical Fundamentals: E2000 vs. MPO Connector Systems in Detail
E2000 connectors are based on the IEC 61754-15 standard and are distinguished by their unique protective shutter. This prevents ferrule contamination and guarantees return loss > 60 dB permanently with APC polish. The ceramic ferrule with 1.25 mm diameter enables precise single-fibre connections.
MPO connectors per IEC 61754-7, by contrast, use a multi-fibre ferrule that connects 12, 24 or even 72 fibres simultaneously. The mechanical precision of the MT ferrule ensures insertion loss of typically < 0.35 dB across all channels.
| Property | E2000 APC | MPO/MTP |
|---|---|---|
| Fibre count | 1 fibre (simplex/duplex) | 12, 24, 48, 72 fibres |
| Insertion loss | < 0.25 dB | < 0.35 dB |
| Return loss | > 60 dB (APC) | > 35 dB (PC) |
| Mating cycles | > 1000 | > 500 |
| Protection mechanism | Integrated shutter | Dust cap |
Port Density and Space Efficiency: The Critical Factor for Data Centres
Modern data centres require maximum port density with minimal footprint. A 1U splice module configured with E2000 connectors typically achieves 48 ports, while the same module with MPO cassettes can accommodate up to 96 fibres.
- E2000 modules: 48 duplex ports on 1U (96 fibres total)
- MPO modules with 8x MPO-12: 96 fibres in identical footprint
- MPO modules with 4x MPO-24: 96 fibres with reduced connector handling
- Hybrid modules: Combination of E2000 and MPO for flexible topologies
The modular splice systems enable subsequent adjustment of connector configuration without complete system replacement.
Diamond Connector Quality: Swiss Precision for Critical Connections
Diamond connectors represent the quality standard in professional fibre optic engineering. The ferrule geometry is manufactured to a tolerance of < 0.5 μm, resulting in exceptionally low loss values.
The Diamond partnership guarantees not only the highest manufacturing quality but also 100% optical end-of-line inspection of every single connector. With E2000 connectors in particular, Diamond quality proves itself in long-term stability of optical parameters.
Fiber Products Quality Promise: As an official Diamond partner and manufacturer, we produce modular splice systems in Europe. Benefit from Swiss precision and 5 years warranty on our systems.
Use Cases: E2000 for Backbone, MPO for High Density
The choice between E2000 and MPO depends significantly on the specific application. E2000 splice modules are optimal for backbone connections with the highest demands on optical quality. The integrated protective shutter makes them ideal for environments with infrequent re-patching.
MPO systems dominate in leaf-spine architectures of modern data centres. Parallel transmission over multiple fibres natively supports 40G, 100G and 400G Ethernet without breakout cables.
- E2000: Long-distance connections > 10 km
- E2000: Critical point-to-point connections
- MPO: Structured cabling in data centre
- MPO: Connection between switches and servers
- MPO: Migration to higher bandwidths without recabling
Installation and Maintenance: Time Factor and Error Sources
Installation time differs significantly between the two systems. A single MPO connector connects 12 fibres in under 10 seconds, whereas 12 E2000 connectors require correspondingly more manual steps.
| Work step | E2000 (12 fibres) | MPO-12 |
|---|---|---|
| Mating time | 120 seconds | 10 seconds |
| Cleaning effort | 12x individual cleaning | 1x complete cleaning |
| Documentation | 12 individual measurements | 1 multi-channel measurement |
| Fault location | Simple identification | Channel-specific analysis required |
During maintenance, E2000 connectors show advantages through automatic cleaning when the protective shutter opens. MPO connections require special cleaning equipment and trained personnel.
Cost-Benefit Analysis for Data Centres
Investment costs for E2000 vs MPO comparison high-performance splice modules with Diamond connectors vary considerably. E2000 systems have 30–40% lower unit costs per port, while MPO solutions score through reduced installation time and higher packing density.
- E2000: Lower initial costs per fibre
- E2000: Lower costs for test equipment
- MPO: Reduced labour costs during installation
- MPO: Smaller footprint saves floor space
- MPO: Future-proof for bandwidth expansion
Standards Compliance and Certifications
Both connector systems meet international standards for data centre cabling. E2000 modules comply with IEC 61754-15 and EN 50173-1, while MPO systems are certified per IEC 61754-7 and TIA-604-5.
For the European market, compliance with DIN EN 50173-5 for data centre cabling is relevant. Both systems meet the requirements of Class OS2 for single-mode fibres.
Migration and Future-Readiness
Data centres must plan infrastructure today that remains current in 10 years. MPO cabling enables migration from 10G to 400G without recabling through simple transceiver replacement.
E2000 systems, by contrast, offer maximum flexibility for individual connections and remain the first choice for long-distance transmission > 40 km. Combining both systems in hybrid splice modules unites the respective advantages.
Quality Assurance and Measurement Technology
Quality control differs fundamentally between the two systems. E2000 connections can be tested individually with standard OTDR equipment, while MPO connectors require multi-channel test equipment with prices starting at €15,000.
- E2000: Visual inspection through protective shutter simplified
- E2000: Standard loss measurement equipment sufficient
- MPO: Special video microscopes required
- MPO: Multi-channel OTDR for complete characterisation
- Both: Return loss as critical parameter
Frequently Asked Questions on E2000 vs MPO High-Performance Splice Modules with Diamond Connectors
What maximum packing density do E2000 vs. MPO splice modules achieve?
E2000 splice modules achieve 48 duplex ports (96 fibres) on 1U. MPO modules with MPO-24 connectors also achieve 96 fibres on 1U, but require only 4 instead of 48 connector positions. With 3U systems, MPO enables up to 288 fibres.
Can E2000 and MPO be combined in one splice module?
Yes, hybrid modules enable combining both connector types. Typical configurations use 50% E2000 for uplinks and 50% MPO for server connections. The modular design allows subsequent upgrades.
What loss values are realistic with Diamond connectors?
Diamond E2000 APC consistently achieve < 0.20 dB insertion loss and > 65 dB return loss. With MPO Diamond connectors, values average < 0.35 dB across all channels with standard deviation < 0.1 dB.
How do cleaning intervals differ?
E2000 connectors with protective shutter require cleaning only every 100–200 mating cycles. MPO connections should be cleaned before every mating, as a single dust particle can affect all 12/24 fibres.
Which solution is suitable for 400G Ethernet?
For 400G Ethernet, MPO systems with 8 fibres (4x100G PAM4) or 16 fibres (8x50G PAM4) are standard. E2000 suits only 400G long-distance with coherent transmission over a single fibre.
What warranty applies to Diamond-quality splice modules?
As a manufacturer, Fiber Products grants 5 years warranty on all Diamond splice modules — unique in the industry. This covers both mechanical function and compliance with optical specifications.
Conclusion: The Optimal Combination for Modern Data Centres
The E2000 vs MPO comparison shows: high-performance splice modules with Diamond connectors fulfil different requirements in data centre environments. E2000 remains the first choice for critical single connections with the highest optical demands, while MPO delivers scalability for mass connectivity.
Modern data centres therefore adopt hybrid solutions: MPO for structured cabling between racks and E2000 for backbone connections. The modular design of splice systems enables flexible adaptation to changing requirements.

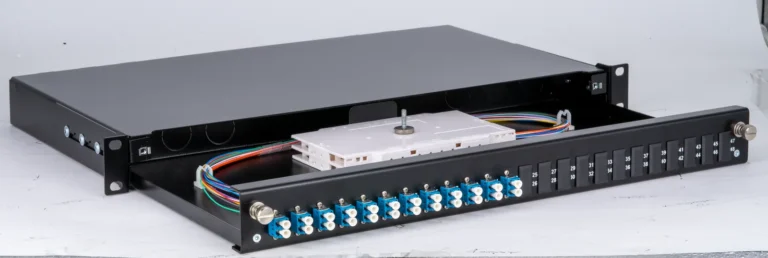

As a European manufacturer and official Diamond partner, Fiber Products offers the complete spectrum of splice modules — from 1U SlimConnect to 4U VarioConnect systems. With 5 years warranty and manufacturing in Swiss precision quality, data centres receive future-proof fibre optic solutions from a single source.
