Diamond E2000 Connectors: New Standards in Fibre Optic Installation

E2000 connectors, Diamond partnership, and premium connectors define new quality standards in professional fibre optic installation through their unique combination of Swiss precision engineering, integrated laser safety protection, and superior optical performance. Developed by Diamond SA, E2000 connectors have become the preferred choice for demanding FTTH deployments, backbone connections, and industrial applications where the highest reliability and longevity are required. With guaranteed return loss exceeding 60 dB in APC configuration and insertion loss typically below 0.25 dB, these connectors meet the most stringent requirements of modern fibre optic networks.

The Technical Evolution of E2000 Connectors in the European Market

The European fibre optic market is undergoing a transformative phase in which premium connectors such as the E2000 series play a key role. Installation companies face the challenge of not only working quickly but also maintaining the highest quality standards. The Diamond partnership ensures consistent Swiss quality, which is particularly evident in the manufacturing precision of ceramic ferrules.

The spring-loaded protective shutter of the E2000 connector offers a decisive advantage over conventional LC or SC connectors: it automatically protects against contamination and prevents eye damage from escaping laser radiation. This safety feature is standardised according to IEC 61754-15 and makes the connector the first choice for installations in public buildings and industrial environments.

Installation time is significantly reduced by the intuitive push-pull locking mechanism. Experienced installers report time savings of up to 30% compared to conventional screw connections, particularly in confined spaces within distribution cabinets.

Diamond Partnership: Swiss Precision Meets European Engineering Excellence

The Diamond partnership represents far more than just a supplier relationship — it stands for the adoption of proven Swiss manufacturing technologies and their further development for the European market. Diamond SA, with over 30 years of experience in developing high-precision fibre connectors, has created a standard with the E2000 connectors that is used worldwide in critical infrastructure.

As an official Diamond partner, Fiber Products not only handles distribution but also manufactures splice modules and splice boxes to Diamond quality standards. This vertical integration enables consistent quality control from raw materials to the finished product. Ceramic ferrules are manufactured to a tolerance of less than 0.5 micrometres — a precision that is essential for the required optical performance values.

Production in Europe guarantees short delivery routes and rapid availability for installation companies. Particularly for time-critical FTTH projects, this is a decisive competitive advantage over imports from Asia.

Technical Specifications of E2000 Premium Connectors

E2000 connectors are available in two main variants: PC (Physical Contact) with straight polish and APC (Angled Physical Contact) with 8-degree angled polish. Both variants meet the requirements of IEC 61754-15 and EN 186270.

The APC variant achieves return loss of at least 60 dB, typically even exceeding 65 dB. These outstanding values are particularly crucial for single-mode applications in PON networks, where reflections can significantly impair signal quality. Insertion loss for both variants is below 0.3 dB, with practical values often in the range of 0.15 to 0.20 dB.

The operating temperature range of -40°C to +85°C exceeds standard requirements and makes the connectors suitable for outdoor installations and industrial environments. Mechanical durability is specified for at least 1,000 mating cycles, with laboratory tests regularly achieving over 2,000 cycles without measurable degradation.

Integration into Modular Splice Systems

E2000 connectors, Diamond partnership, and premium connectors form the heart of modern splice modules, enabling structured and scalable fibre optic cabling. The modular design of Fiber Products’ SlimConnect and VarioConnect systems allows flexible configuration with E2000 adapters in various setups.

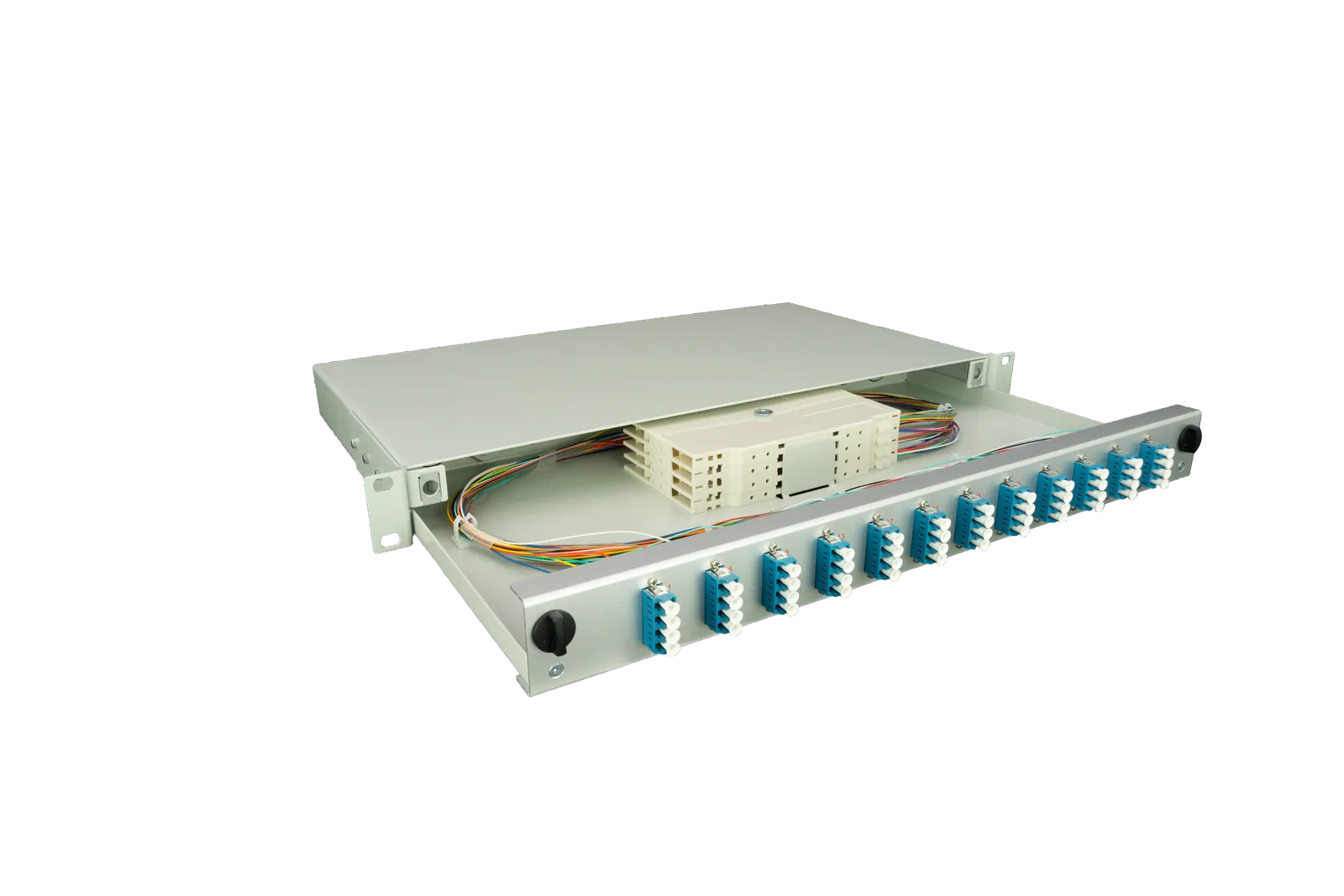

In the SlimConnect 1RU configuration, up to 96 fibres can be accommodated in one rack unit — twice as many as standard solutions. This is achieved through the compact design of the E2000 adapters and optimised cable routing within the splice cassettes. High fibre density is particularly relevant for data centres and colocation providers, where each rack unit represents valuable space.

The splice cassettes are designed to accommodate both fusion splices and mechanical splices. Integrated fibre slack management prevents microbending and ensures long-term stable optical performance.

Application Scenarios in Installation Practice

Installation companies have diverse applications for E2000 premium connectors. In FTTH deployments, they are preferred for building entry points and the transition from outdoor to indoor cables. The robust design and integrated protection eliminate the need for additional measures.

When installing in multi-family buildings, the colour coding of E2000 connectors proves valuable. Green APC connectors for single-mode connections and blue PC connectors for multimode applications enable clear identification even years after installation. This significantly reduces errors during maintenance and upgrades.

In industrial environments where electromagnetic interference and mechanical stress occur, E2000 connectors provide additional protection through their metallic housing design. The push-pull locking mechanism prevents accidental disconnection due to vibration — a frequent problem with screw connections.

Standards Compliance and Certifications

Compliance with international standards is essential for installation companies, particularly in public procurement processes. E2000 connectors from the Diamond partnership meet all relevant standards:

Mechanical and optical properties conform to IEC 61754-15, environmental requirements are tested according to IEC 61753-1. For use in telecommunications networks, compliance with ITU-T L.36 and L.37 is assured. CE marking confirms compliance with all European directives.

Additionally, premium connectors feature RoHS certification and are REACH-compliant. This is particularly relevant for projects in public facilities such as schools and hospitals, where strict environmental regulations apply.

Cost-Effectiveness and Investment Security

Investment in E2000 premium connectors is recovered through multiple factors. Reduced installation time saves direct labour costs — on a typical FTTH project with 500 connections, this can amount to several thousand euros. Lower error rates from integrated protection reduce costly rework.

Fiber Products’ 5-year warranty on all Diamond partnership components provides additional investment security. This extended warranty is unique in the European market and underscores confidence in product quality. Given a typical service life of 20-25 years for fibre optic installations, long-term stability of connectors is critical.

The availability of spare parts and backward compatibility with existing E2000 installations safeguard investments long-term. Installation companies can optimise inventory as the same components can be used for different projects.

Practical Tips for Professional Installation

Correct handling of E2000 connectors begins with storage. Connectors should always be stored with the protective shutter closed to prevent ferrule contamination. Prior to installation, inspection with a fibre microscope according to IEC 61300-3-35 is recommended.

During termination, attention must be paid to the correct pull length of aramid yarns. These should be evenly secured under the crimp sleeve to ensure optimal strain relief. Use of factory-specific crimp tools is mandatory — universal tools often result in insufficient crimping force.

Cleaning of connector end faces is ideally performed with single-use cleaning tools or lint-free wipes and isopropanol. After cleaning, re-inspection should be performed to exclude any residue. With APC connectors, particular care is required, as even tiny particles can significantly reduce return loss.

Future-Proof Infrastructure Through Scalable Systems

E2000 connectors, Diamond partnership, and premium connectors are part of a future-proof infrastructure strategy. With increasing bandwidth demands from 5G, IoT, and cloud services, installations must be designed for tomorrow today.

Fiber Products’ modular systems enable step-by-step expansion without replacing core infrastructure. A SlimConnect module originally equipped with 24 fibres can be expanded to 48 or even 96 fibres as needed. E2000 adapters remain fully compatible and do not require replacement.

For future transmission rates up to 400 Gbit/s and beyond, the optical properties of Diamond E2000 connectors are already designed accordingly. Extremely low insertion loss and high return loss meet the requirements of future transmission standards.

FAQ: Frequently Asked Questions About E2000 Premium Connectors

How do E2000 APC and PC connectors differ in practice?

E2000 APC connectors with 8-degree angled polish achieve return loss exceeding 60 dB and are optimal for single-mode applications in FTTH and PON networks. PC connectors with straight polish offer approximately 50 dB return loss and are mainly used in multimode installations or non-critical single-mode connections. Colour coding (green for APC, blue for PC) prevents confusion.

What tools do I need for E2000 termination?

Professional termination requires specialist E2000 crimp tools, a fibre microscope for end-face inspection according to IEC 61300-3-35, precision cable strippers, and kevlar scissors. A fibre cleaver for precise fibre breaks and cleaning tools round out the basic toolkit. Investment in high-quality tools pays for itself through reduced scrap rates.

Are E2000 connectors compatible with other connector types?

E2000 connectors are not directly compatible with LC, SC, or other connector types. However, hybrid adapters are available for transitions, such as E2000 to LC or SC. In modular splice systems, different connector types can be used in parallel, providing maximum flexibility during legacy migrations.

What is the maximum fibre density with E2000 connectors?

In Fiber Products’ SlimConnect 1RU systems, up to 96 fibres can be accommodated with E2000 connectors. This corresponds to 48 duplex connections in one rack unit — double the density of standard solutions. VarioConnect 3RU/4RU systems scale accordingly to up to 288 fibres.

What is the service life of E2000 premium connectors?

E2000 connectors from the Diamond partnership are specified for at least 1,000 mating cycles. In practice, they often achieve over 2,000 cycles without measurable degradation. With typical use in FTTH installations, where connectors are rarely changed, a service life of 25 years or more is realistic.

How do I identify genuine Diamond quality?

Genuine Diamond E2000 connectors bear the Diamond marking on the connector housing. As an official partner, Fiber Products guarantees the authenticity of all supplied components. Complete batch traceability and included test certificates confirm Swiss precision quality.

Summary and Outlook

E2000 connectors, Diamond partnership, and premium connectors set new standards in professional fibre optic installation. The combination of Swiss precision engineering, innovative safety features, and superior optical properties makes them the ideal choice for demanding FTTH projects and industrial applications.

As a manufacturer of modular fibre optic solutions and official Diamond partner, Fiber Products offers the complete system solution — from splice box to E2000 connector in Swiss precision quality. The 5-year warranty and European production guarantee installation companies maximum investment security and rapid availability.

For detailed technical advice on your next fibre optic project, the experts at Fiber Products are at your service. Discover the full range of Diamond E2000 connectors and modular splice systems at request a quote.
