Fibre Optic Project Management: From Civil Works to Commissioning – Complete Guide to FTTH Deployment and Fibre Rollout Procedures

The fibre optic project management process encompasses all project phases from initial civil works through optical fibre installation to final network commissioning—a structured FTTH project management approach coordinates permitting, construction execution, splicing operations and quality assurance, while the fibre rollout procedure typically requires 12–18 months from planning to operational network. Successful fibre optic deployment demands precise coordination between civil works contractors, installation teams and network planners, with modular splice systems supporting up to 96 fibres in 1U able to reduce installation time during the critical commissioning phase by up to 40%.

With accelerated FTTH rollout in the DACH region—major operators plan 2.5 million new connections annually—demands on efficient project execution are rising. The new Telecommunications Act Amendment 2026 streamlines permitting through deemed approval after two months, and the EU Gigabit Infrastructure Regulation mandates fibre-ready building infrastructure from February 2026 onwards.

The 7 Key Phases of Fibre Optic Project Management in Detail

Every FTTH project follows systematically defined phases standardised by DIN 18382 regulations for cable and conduit installation, plus VDE 0888 for optical communication cables. Overall project duration ranges from 6 months for smaller commercial areas to 24 months for complete urban districts.

Project Phase	Duration	Critical Success Factors	Typical Challenges
Planning & Permitting	2–4 months	Complete documentation per § 68 TKG	Right of way, environmental restrictions
Detailed Design	1–2 months	Route definition, customer connections	Existing utilities, crossing management
Civil Works & Conduit Installation	3–6 months	Weather, site logistics	Soil conditions, traffic disruption
Cable Pulling	1–2 months	Bend radius min. 15× cable diameter	Pulling tension, conduit misalignment
Splicing	2–3 months	Attenuation < 0.1 dB per splice	Fibre quality, documentation
Testing & Documentation	2–4 weeks	OTDR reports per IEC 61280-4	Reflections, macrobends
Commissioning	1–2 weeks	System integration, handover protocol	Compatibility, port allocation

Civil Works Phase: Modern Installation Techniques for Efficient Fibre Deployment

The civil works phase determines cost and schedule for the entire fibre optic deployment. At 60–80% of total investment, it represents the largest cost block. Modern methods such as micro-trenching reduce construction time by up to 70% compared to conventional excavation.

• Micro-trenching: Trench width 3–12 cm, depth 10–40 cm, ideal for urban paved areas
• Ploughing: Speed up to 2 km/day in rural regions without surface hardstanding
• Directional drilling: Obstacle crossing without excavation, lengths up to 500 m
• Conventional trenching: Standard depth 60–80 cm per DIN 1998, required for multi-utility installation
• Multi-duct systems: Multiple conduits for future expansion, typical 4×7 mm or 7×10 mm microduct

Installation method choice directly impacts required splice infrastructure. Micro-trenching projects with frequent surface exits benefit from compact IP65-rated DIN-rail systems, while conventional trenching projects typically use traditional termination boxes or modular splice enclosures in access chambers.

FTTH Project Management: Coordinating Trades and Interface Control

Successful FTTH project management requires precise coordination across 5–8 different trade disciplines. The greatest challenge lies in synchronising civil works, cable installation and customer drop installation during active network operation.

Fiber Products Quality Commitment: As an official Diamond Partner and European manufacturer, we produce modular splice systems to the highest standards. Benefit from Swiss precision and 5-year warranty on all systems—essential for demanding FTTH rollout requirements.

Project control must manage critical handover points: transition documentation between civil works and installation teams with precise conduit mapping, coordination of splice crews executing average 24–32 splices per technician per day, and integration of testing teams for OTDR measurements per IEC 61280-4-2.

• Site logistics: Just-in-time cable drum delivery (typically 2–4 km length)
• Resource planning: 2–3 splice crews per 1000 premises for parallel operations
• Quality assurance: Sample testing of minimum 10% of all routes
• Documentation: GIS-based recording of all routes and components
• Incident management: 24-hour readiness during critical cutover windows

Splicing Operations and Modular Distribution Systems in Fibre Rollout

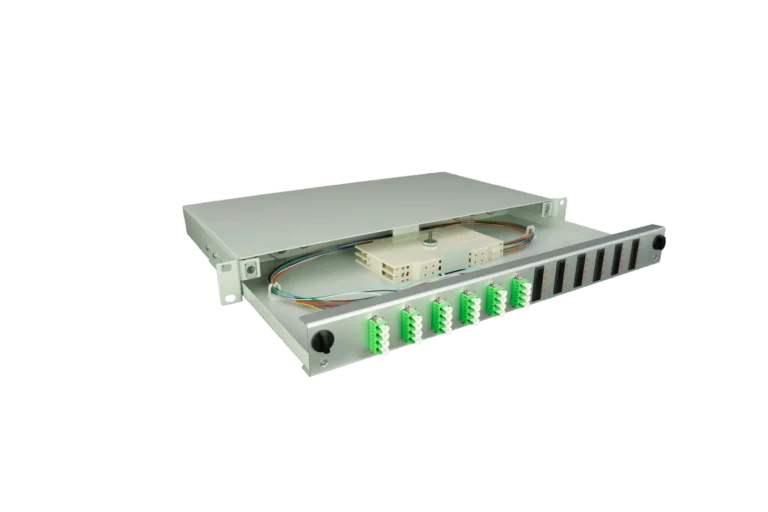

The splicing phase transforms installed cable into functional networks. Modern modular splice systems like SlimConnect enable up to 96 fibres in just 1U height—double the density of conventional solutions. This not only cuts installation space by 50% but also shortens installation time through pre-configured modules.

Technical requirements for splice connections are defined by IEC 61300-3-4: maximum attenuation 0.1 dB for singlemode fibre, return loss minimum 60 dB for fusion splices. Choice between mechanical and fusion splicing depends on project scale and quality requirements.

Splice Method	Attenuation	Installation Time	Cost per Splice	Application
Fusion Splice	< 0.05 dB	3–5 min	€8–12	Backbone, FTTH distribution
Mechanical Splice	< 0.2 dB	1–2 min	€15–20	Repairs, temporary connections
Pre-terminated	< 0.3 dB	30 sec	€25–35	End-customer connections

Testing and Quality Assurance in Fibre Optic Project Management

Metrological acceptance validates the optical performance of the entire network. Per VDE 0888-100, OTDR measurements on all main routes and attenuation measurements on every connection are mandatory. Thresholds depend on distance class: OF-300 for building networks to 300 m, OF-500 for campus cabling to 500 m, and OF-2000 for long-haul networks.

• OTDR measurement: Event detection, attenuation distribution, reflection measurement at 1310/1550 nm
• Attenuation measurement: End-to-end attenuation, budget calculation per link class
• Chromatic dispersion: Relevant above 10 Gbit/s, limit 17 ps/(nm·km) for G.652.D
• PMD measurement: Polarisation mode dispersion for high-speed circuits >40G
• Contamination inspection: Microscopic examination of connector tip surfaces per IEC 61300-3-35

Documentation is handled digitally in network management systems with GIS integration. Each fibre receives a unique identifier, and all test reports are mapped to corresponding routes. This enables later fault diagnosis and capacity planning.

Commissioning and System Integration in FTTH Project Management

The final commissioning phase transitions passive infrastructure into an active network. Here, investment in high-quality modular systems pays dividends: splice enclosures with 1U height and standardised front modules enable structured handover from construction to operational mode. Active component integration proceeds in stages, beginning with backbone through to end-customer connections.

Critical is adherence to optical budgets: typical GPON systems provide 28–32 dB budget, of which splitters consume 16–21 dB. Minimum 3 dB margin must remain for ageing and repairs. High-quality splice modules with attenuation under 0.25 dB per connection are essential here.

• OLT installation: Optical Line Terminal in main distribution frame, backbone connectivity
• Splitter configuration: 1:32 or 1:64 split depending on network design
• ONT activation: End-device provisioning, VLAN configuration
• Service migration: Phased cutover from copper to fibre
• Performance monitoring: Real-time supervision of attenuation and bit error rate

Challenges and Solutions in Fibre Rollout Procedures

Despite optimised processes, fibre optic deployment regularly encounters obstacles. The most common delay causes are missing right-of-way permits (35% of all projects), unforeseen soil conditions (25%) and specialist cable supply constraints (20%). Experienced project managers anticipate these risks through contingency scheduling and alternative procurement strategies.

In urban environments, coordination with other utility operators proves particularly complex. The new Telecommunications Act Amendment §22a mandates co-installation during excavation work from 2026, creating synergies but requiring additional coordination. The solution lies in digitalised planning with BIM integration and automated clash detection.

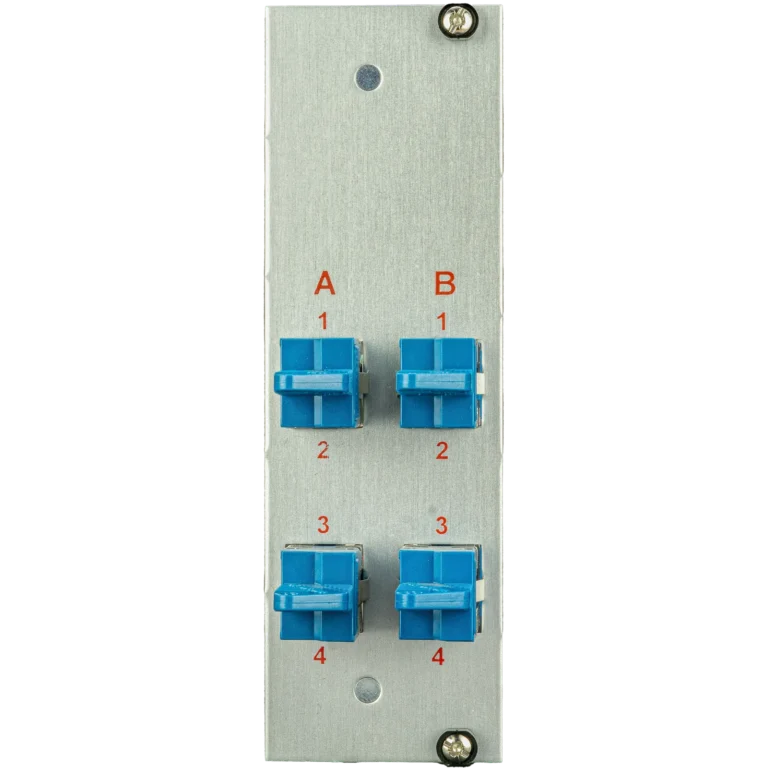

Technical challenges arise especially when integrating different fibre types and connector systems. While new projects standardise on LC-Duplex or MPO/MTP, existing networks often require adapters for legacy SC or ST connections. Modular systems with interchangeable front panels offer maximum flexibility—a key advantage of the VarioConnect series with compatibility for all common connector types.

Economic Analysis of Fibre Optic Project Deployment

Investment costs for FTTH projects vary significantly by building density and installation method. In urban areas, costs range from €500–800 per premise, while rural regions can reach €2000–3000. Payback typically occurs over 8–12 years at minimum 40% uptake rates.

Cost Element	Share of Total	Savings Potential	Optimisation Strategy
Civil Works	60–70%	up to 40%	Micro-trenching, co-installation
Material (Cable/Boxes)	15–20%	up to 15%	Framework agreements, standardisation
Installation/Splicing	10–15%	up to 30%	Pre-termination, modular systems
Planning/Permitting	5–10%	up to 20%	Digitalisation, regulatory streamlining

Selecting high-quality components with extended warranty significantly reduces lifecycle costs. Systems with 5-year manufacturer warranty achieve payback despite higher upfront investment through lower failure rates and reduced maintenance needs within 3–4 years.

Regulatory Requirements and Certifications in FTTH Project Management

Fibre optic deployment operates within a complex framework of European and national standards. Central are EN 50173-1 for application-independent communication cabling systems and EN 50174 for installation and operation. The new EU Gigabit Infrastructure Regulation (GIA) sets minimum requirements for in-building infrastructure from February 2026.

• IEC 61754 series: Connector interface specifications (LC: -20, SC: -4, MPO: -7)
• IEC 61755 series: Optical attenuation and return loss of connectors
• IEC 60794 series: Optical fibre cables for outdoor and indoor applications
• DIN VDE 0888: German application rules for optical cables
• ISO/IEC 14763-3: Optical fibre cabling test procedures

Public sector projects must additionally comply with VDI 2879 for data centres and specific security requirements per BSI IT-Grundschutz. Contractor certification per DIN EN ISO 9001 is typically mandatory for public tender.

Future Perspectives and Technology Trends in Fibre Rollout

Fibre optic project management continues evolving. By 2030, XGS-PON at 10 Gbit/s symmetric and ultimately 50G-PON will become standard. This requires stricter splice quality and more rigorous cleanliness standards—attenuation budgets shrink to < 0.03 dB per connection.

Automation is revolutionising installation: robotic cable pulling through existing conduits, AI-powered route optimisation and predictive maintenance systems reduce both installation time and operating costs. The integration of digital twins allows real-time simulation of network performance during deployment phases.
