FIBER OPTIC INFRASTRUCTURE | TECHNOLOGY & INNOVATION
High-Quality Splice Modules for Professional Modular Systems in Fiber Distribution
Our proven 7HP module architecture offers highest quality and flexibility for modern fiber optic infrastructures.
From compact 6-fiber solutions to high-density 288-fiber systems – modular scaling without system changes.
Standardized modules for maximum flexibility and future-proofing.
Our splice modules for modular systems
7HP splice modules for modular 1U solutions and high-capacity 3U or 4U systems – available in all common connector types

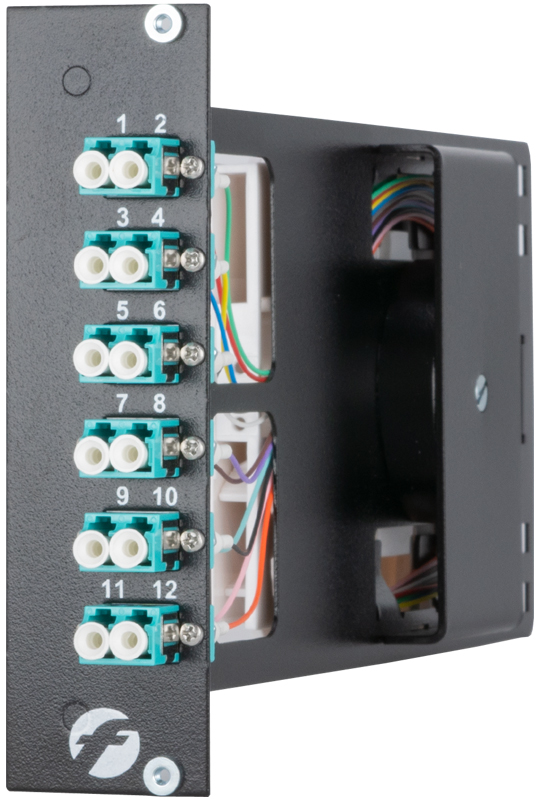

SM 6LC DX 7TE H OM3 BLACK – Side view

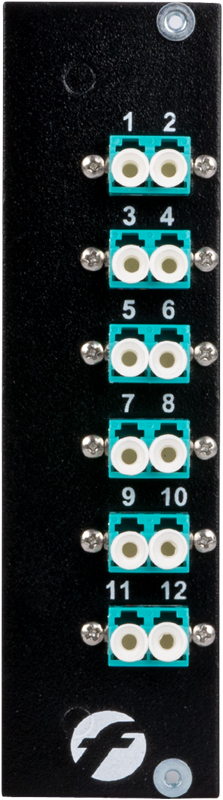

Professional 7HP splice module with 6 LC duplex connections for OM3 multimode fibers
Professional splice modules for maximum flexibility
Our splice modules revolutionize fiber optic distribution through consistent modularity. The 7HP format enables granular scaling from 6 to 288 fibers without system changes – perfect for growing networks and changing requirements.
- 7HP module format – Building block for modular 1U, 3U and 4U systems
- Available in all common connector types: LC, SC, E2000, MTP

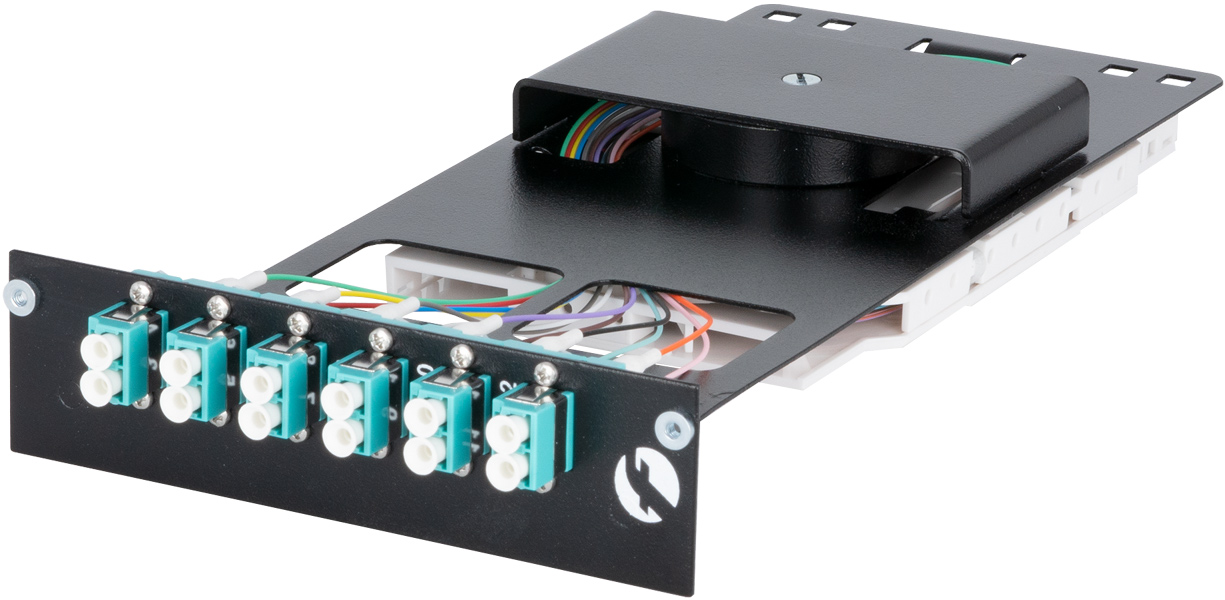

- Pull-out modules for service-friendly maintenance
- Scaling from 6 to 288 fibers without system conversion

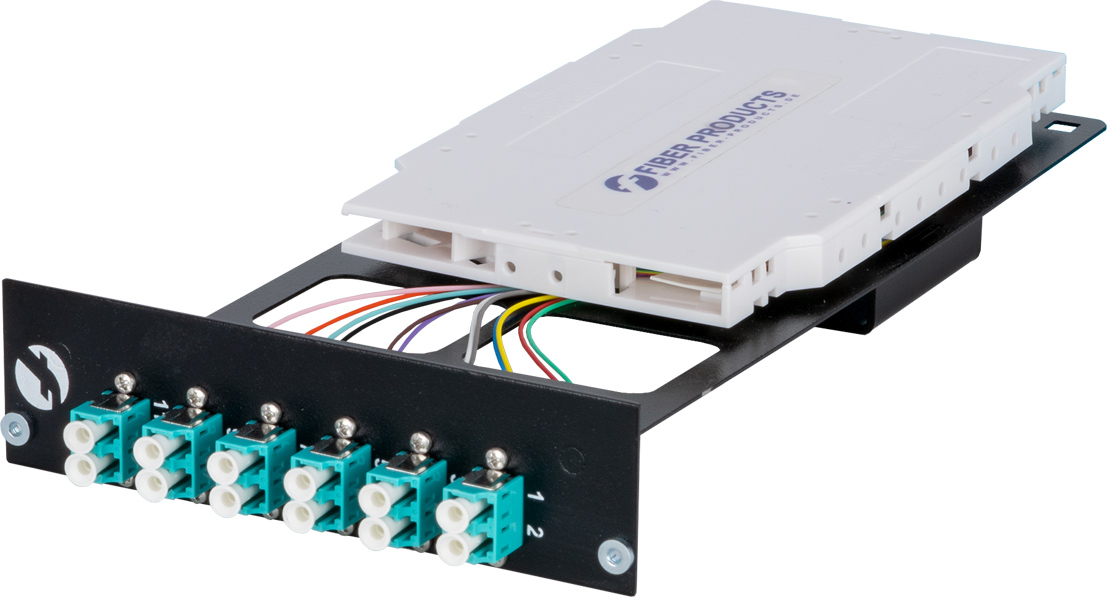

- Precise splice cassettes with optimal fiber management
- For air-conditioned interiors from 0°C to +60°C
- European manufacturing quality with a 5-year guarantee
Unique modularity: The consistent 7HP module format allows you to start small projects with individual modules in 1U systems and seamlessly expand to high-capacity 3U or 4U systems as required. All modules are available in different connector types.
🛒 Discover now in the online shop
All splice modules and system configurations are available directly in our online shop.
From individual modules to complete system solutions at competitive prices.
Technical specifications
7HP modular architecture for VarioConnect systems with European manufacturing quality and maximum flexibility.
| Module width | 7HP (35 mm) – standard Eurocard format for VarioConnect frames |
| Fiber capacities | 6-, 12- and 24-fiber modules – Configurable by module |
| System capacity | Up to 72 fibers (1U), up to 288 fibers (4U) – Depending on the frame system |
| Connector types | LC, SC, E2000 DIAMOND, MTP/MPO – standardized per module |
| Maintenance concept | Pull-out modules – service-friendly access without interruption |
| Operating temperature | 0°C to +60°C – Optimized for air-conditioned interiors |
| Fields of application | Data centers, wind power, transport companies, industrial plants |
| Manufacturing | European production (Romania) – German engineering quality |
| Warranty | 5-year manufacturer’s warranty – Competitive prices on request |
Frequently Asked Questions about 7HP Splice Modules
Important answers about modular splice modules with 7HP architecture for professional fiber optic distribution in 1U, 3U and 4U systems
Standardized construction width: 7 horizontal pitches (7HP = 35mm) correspond to the proven Eurocard format for maximum compatibility.
Modular flexibility: All modules have uniform dimensions and can be freely combined in VarioConnect module carriers.
Scalable capacity: Available as 6-, 12- and 24-fiber modules for demand-oriented configuration.
System compatibility: Can be used in 1U, 3U and 4U systems without restrictions.
LC connectors: Standard for modern fiber optic networks with high packing density and duplex connections.
SC connectors: Proven for backbone connections and industrial long-distance applications.
E2000 DIAMOND: Swiss precision with automatic shutter cap system for the highest demands.
MTP/MPO connectors: For high-speed connections and maximum port density in data centers.
Uniform per module: Each module is optimized for a specific connector type.
1U systems: Up to 3 modules (max. 72 fibers) for compact installations.
3U systems: Up to 12 modules (max. 288 fibers) for medium requirements.
4U systems: Up to 12 modules (max. 288 fibers) for highest capacities.
Granular expansion: Start with few modules and expand gradually without system change.
Flexible module exchange: Modules can be replaced at any time for other connector types or fiber counts.
Service-friendly maintenance: Modules can be completely pulled out for optimal access to all splice cassettes.
Uninterrupted operation: Maintenance without affecting adjacent connections during operation.
Easy access: All fibers and splice points are easily accessible for installation and repair work.
Module exchange possible: Complete modules can be replaced if needed for technology upgrades.
Data centers: High-density fiber optic distribution with various speeds from 10G to 400G.
Wind turbines: Robust splicing technology for SCADA systems and renewable energy connections.
Transportation companies: Secure fiber optic connections for rail, subway and traffic control systems.
Industrial facilities: Reliable network infrastructure for Industry 4.0 and Smart Factory applications.
Telecommunications: Flexible splicing solutions for carriers and network operators in FTTH expansion.
Operating temperature: 0°C to +60°C for air-conditioned indoor spaces and technical rooms.
Optimized fiber routing: Precise splice cassettes with controlled bending radii for longevity.
Robust construction: European manufacturing quality for 25+ years of operation.
Indoor optimized: Specially developed for professional IT and telecommunications environments.
Unique modularity: Continuous 7HP architecture for all system sizes from 1U to 4U.
German quality: European manufacturing with 5-year warranty for maximum investment security.
Universal compatibility: Modules can be used in various VarioConnect systems.
Future-proof: Module change instead of system change with technology changes or expansions.
Service-friendly: Pull-out construction for maintenance-friendly installation.
Directly available: All 7HP modules are available in the online shop with competitive prices.
Individual consultation: Project-specific system design based on your requirements.
Modular selection: Choose from 6-, 12- and 24-fiber modules in various connector types.
Complete systems possible: From individual modules to fully equipped systems available.
Technical support: Comprehensive support in planning and integration into existing systems.
Splice modules for various industries
7HP modular architecture for maximum flexibility – scalable from 6 to 288 fibers for professional fiber optic distribution in controlled indoor environments
System integrators
Flexible 7HP modules for customer-specific project solutions – from individual modules to high-capacity systems for controlled environments
Industry 4.0
Service-friendly 7HP modules for Industry 4.0 and controlled production environments – expandable with RailConnect compatibility
Municipal utilities
Modular systems with limited dust and moisture resistance for growing municipal networks – start small and expand step by step in protected environments
System houses
Professional IT system solutions with modular 7HP components – scalable for different customer projects in climate-controlled environments
Wind power
DIAMOND E2000 precision connectors in 7HP modules for protected distribution cabinets – modularly expandable for ring topologies with vibration resistance
Installers
Professional 7HP modules for efficient installation and service-friendly maintenance – expandable systems for technical rooms (0°C to +60°C)
Ready for modular splicing solutions?
Talk to our splice module experts about your fiber optic project.
Free consultation, individual configuration and tailor-made solution proposals for every application.
✓ Free initial consultation ✓ Modular 7HP solutions ✓ 5 year guarantee ✓ Made in Europe
Professional splice modules for data centers, telecommunications and industry
